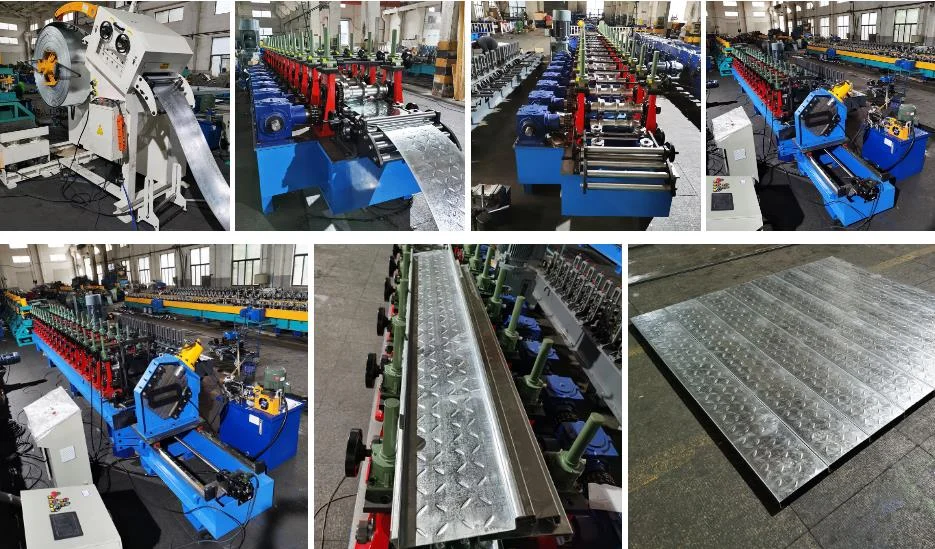

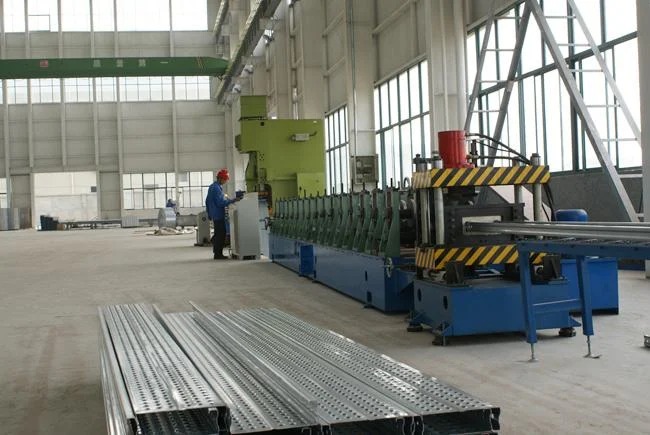

Galvanized Steel Panel For Scaffold Walking Board Roll Forming Machine roll forming machine scaffold plank
| NO. | Name | Quant. | Remark |
| 1 | 5T hydraulic Motoized decoiler | 1 set | 1)Max 5T 2)Max coil:500mm 3)Motor:5.5kw made in China |
| 2 | Leveling machine | 1 set | 1) 7 rolls leveling( top 3 rolls and bottom 4 rolls) 2)Rolls material:40Cr 3)Leveling speed:max 20m/min 4)5.5kwdriving-motor,speed adjustable |
| 3 | Speed control sensor | 1 set | It can make the punching and forming speed simutaneous |
| 4 | SRF300B servo motor Feeder | 1 set | 1)Feeding speed:max 20m/min 2)Mitsubishi servo-feeder system and PLC,made in Japan 3) 70 mm feeder rolls |
| 5 | Punching press | 1 set | 1)Model:JF21-80 2)Motor:11KW 3)Slide stroke:max 45 times /min |
| 6 | Punching mould | 1 set | 1)Mould material Cr12Mov |
| 7 | Main forming Machine unit |
1 set | 1)20 forming stands 2) Cast iron stands 3)Gearbox drive 4) power:45kw |
| 8 | Turkish head | 1 set | It can make the product straight |
| 8 | Flying shear | 1 set | 1)Yaskawa servo-motor control with ball screw 2)Servo-motor power 3 kw |
| 9 | Cutting blade | 10 sets | Cr12 |
| 10 | motorized table | 1 set | 1) Length :6m 2) Pneumatic control |
| 11 | Electric panel | 1 set | 1)PLC control system,Panasonic/Siemens 2)Yaskawa inverter 3)Omron encoder |
| 12 | Cooling&lubrication system | -- | --- |
