C Z purlin cold roll forming machine is a machine can produce many sizes
Detailed Content
C Z purlin cold roll forming machine is a machine can produce many sizes,Generally,there are three types of machine, c purlin machine, z purlin roll forming machine, C Z Section Steel Purlin Machine. The Web width can be 60-300mm Flange height can be 30-80mm, it is adjustable from min to max. The size of holes can be design by customers.

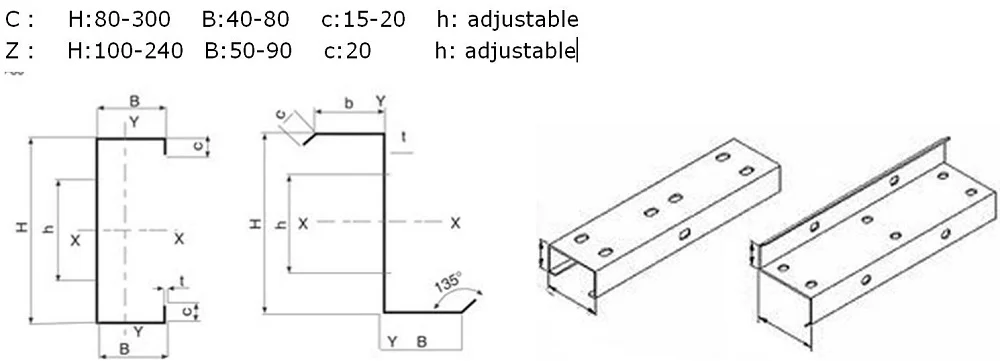

The drawing profiles for your reference
Components of production line:
| NO. | Name | Unit | Qty |
| 1. | 5 Tons Manual Decoiler | set | 1 |
| 2. Main forming machine |
Leveling Guiding Feeding device | set | 1 |
| Forming device | set | 1 | |
| Automatic shearing part (Post cutting two pillar type) |
set | 1 | |
| 3. | PLC control system | set | 1 |
| 4. | Hydraulic oil pump station | set | 1 |
| 5. | Receiving table | set | 1 |
Main roll forming machine parameters:

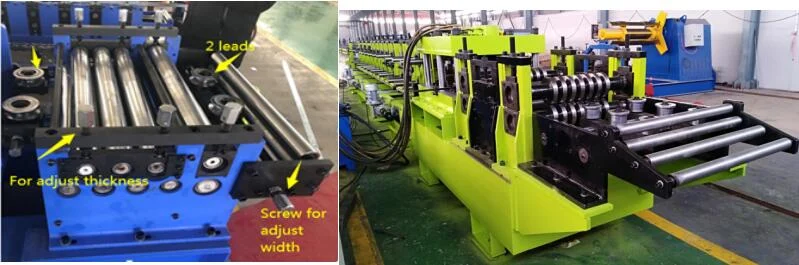

| Leveling: 7 rollers:top three,down four (For confirm the coil be neat and smooth) |
| Roller material:45# steel,chromed and quenched (The material of rollers could stop scratching the zinc of the steel.) |
| Guiding device:With 2 leads before the leveling device and 2 leads after. (For confirm the feeding position right for roll forming) |
| Width: adjustable(With the screws) |
| Thickness:adjustable(With the screws) |
| 1. Machine frame:Weld structure. | |
| 2. Rollers:18 sets,after chromed and quenched.For long time using with anti-wear. | |
| 3. Roller Material:Main rollers:GCr15 Supporting side rollers:Cr12 high frequency heat treatment HRC50-55 ℃,accurate grinding, surface polished,hard chrome |
|
| 4. Shafts Material:Motor drive shaft: 40Cr steel Other roll shaft: 45# steel Roller Processing technology: rough moulding Processing technology: quenching and tempering treatment HB210-230,rough car and cylindrical grinding,polishing surface hard chrome plating |
|
| 5. Motor power: 18.5 KW | |
| 6. Forming speed: 0-30 m/min | |
| 7. Transmission way: By chain | |
| 8.With the protect cover | |
| Size change | Unbridled shearing system, you can cut all size products by adjusting the blade,it is much easier than traditional shearing system. |
| Cutting method | Hydraulic cutting with two hydraulic cylinders Give strong power for cutting |
| Cutting system | Full Automatic Cutting |
| Cutter material | GCR12 chromed and quenched Anti-wear.For long times using. |
