Steel stud framing rolling machine

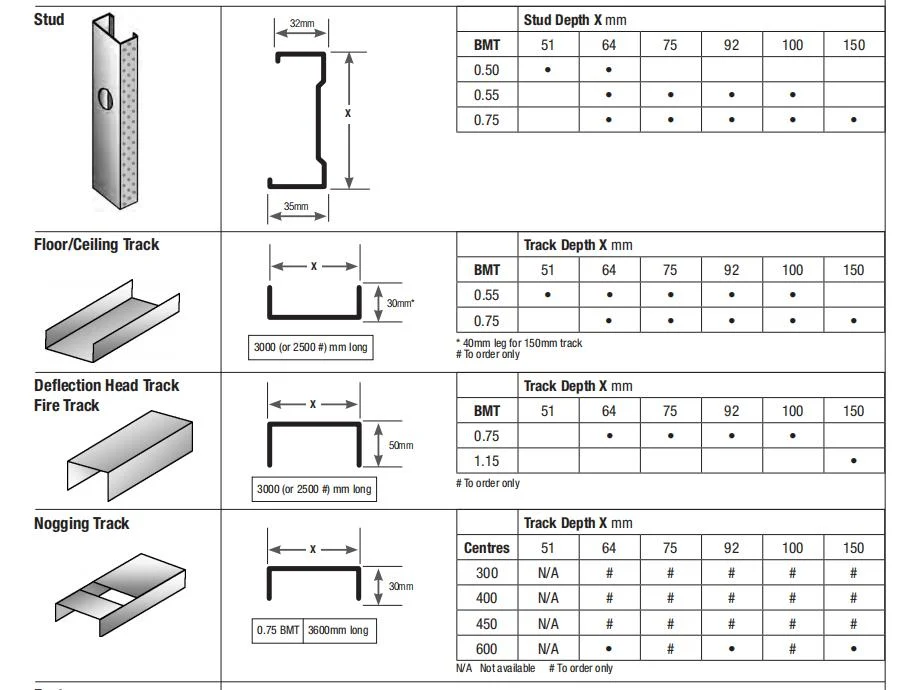

Steel stud framing rolling machine is designed to make the stud and track for home framing in batch fully automatic by rolling forming principle. By the rolling machine, we can create the “green building”, although it has different meanings to different entities, in its simplest context means “construction in a sustainable manner.” Several organizations have developed requirements or criteria for the evaluation of structures and products with respect to sustainability and green building. Here I will take the following drawing profile for your reference:

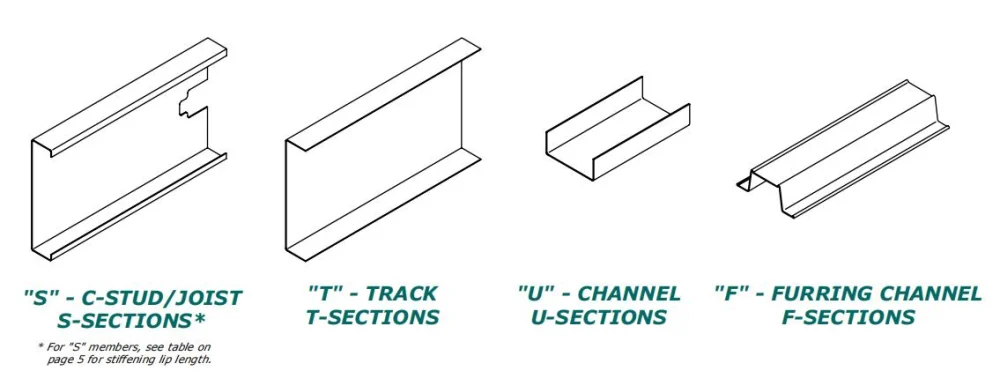

Steel studs and other structural members in load bearing walls shall not be spliced. (Runner tracks may be spliced per approved plan or manufacturer’s specifications.)  Field cuts or notches through the flanges or lips of any structural member not allowed. ¨Damaged members such as cracking in the steel at the bend radius location, and members with scaling of protective coating not allowed. Welding of steel members is not permitted. By chance, all the profiles I shared here are popular in American, so you do not need to worry to consider them:

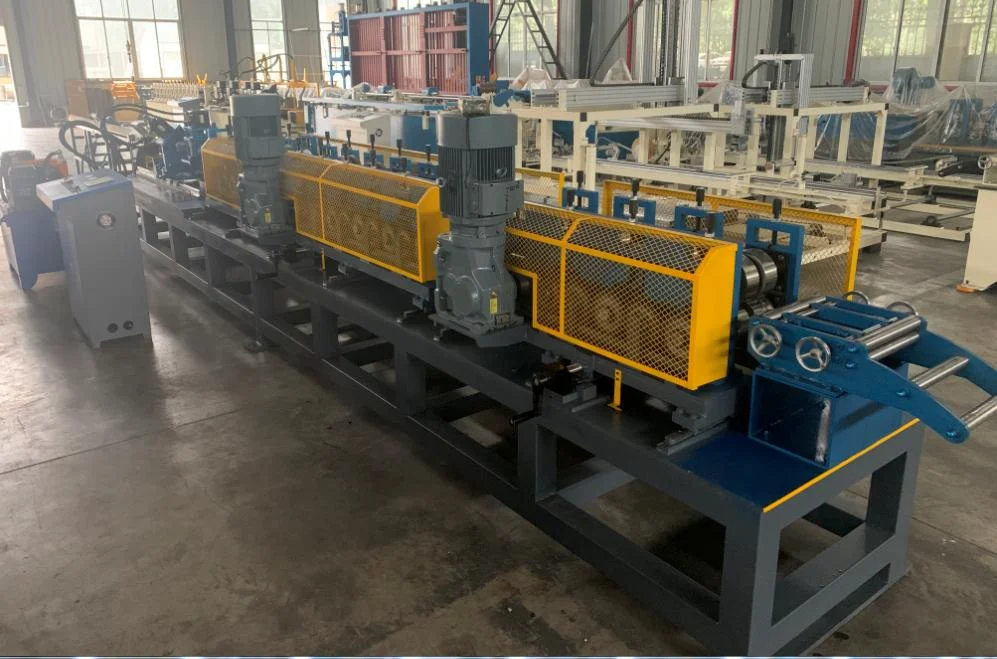

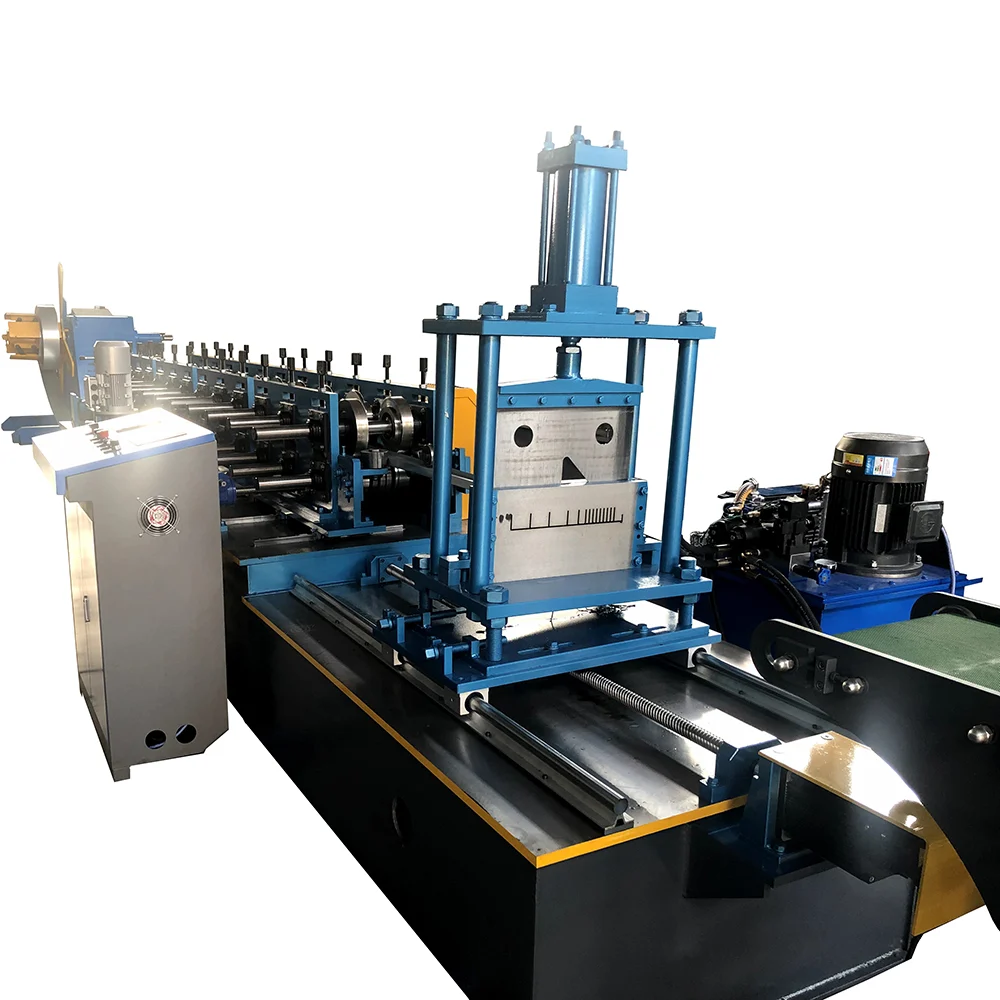

Steel stud framing rolling machine One Fully Automatic type for your reference:

Steel stud framing rolling machine One Fully Automatic type Features:

1. By this one machine it can be used to either to produce stud or track by PLC control.
2. PLC control the size changing, easy to work.
3. For the cutting blade, it has many types in one then no need to change the cutting blade for different sizes.
4. Servo motor control the size changing, it is 100% accurate.
5. Two main motor for transmission, for power could be give more evenly.
6. The punching part could be designed according to customer requirements.

Here are more details for your Steel stud framing rolling machine reference:

​​​​​​​

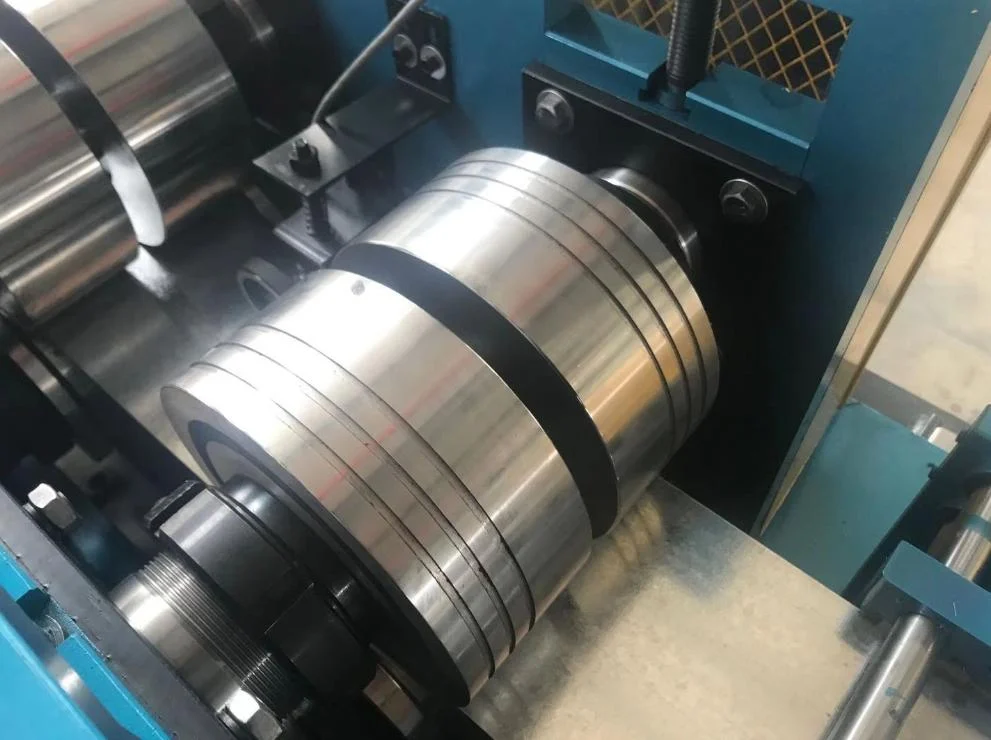

Adjustable rollers using SKD11 for sizing changing.

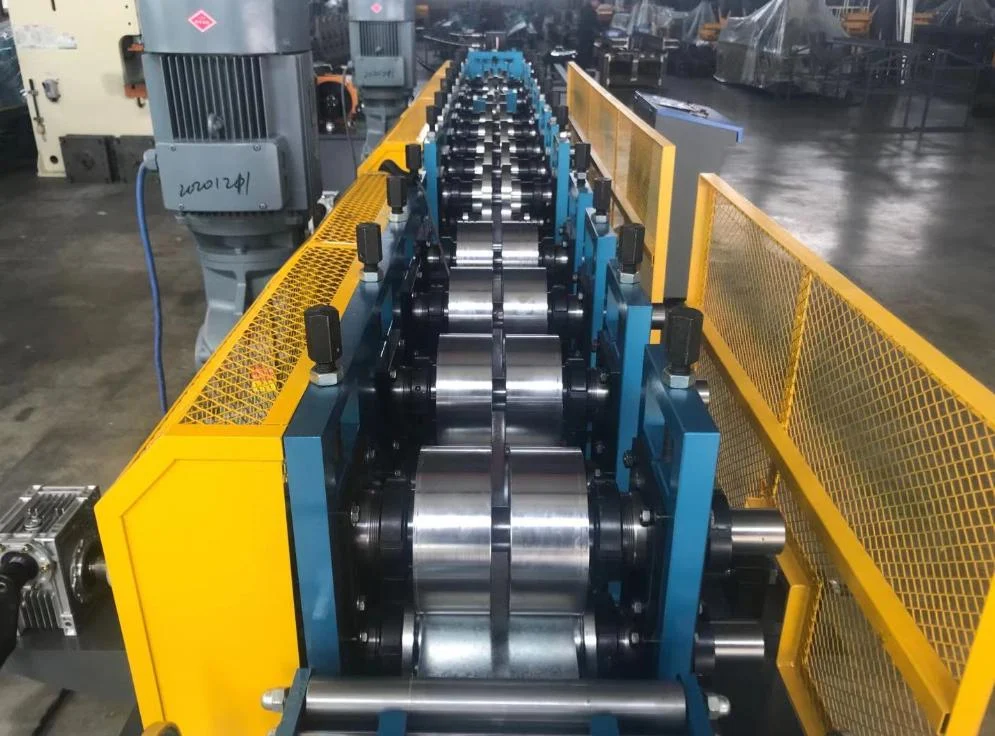

Knurling rollers

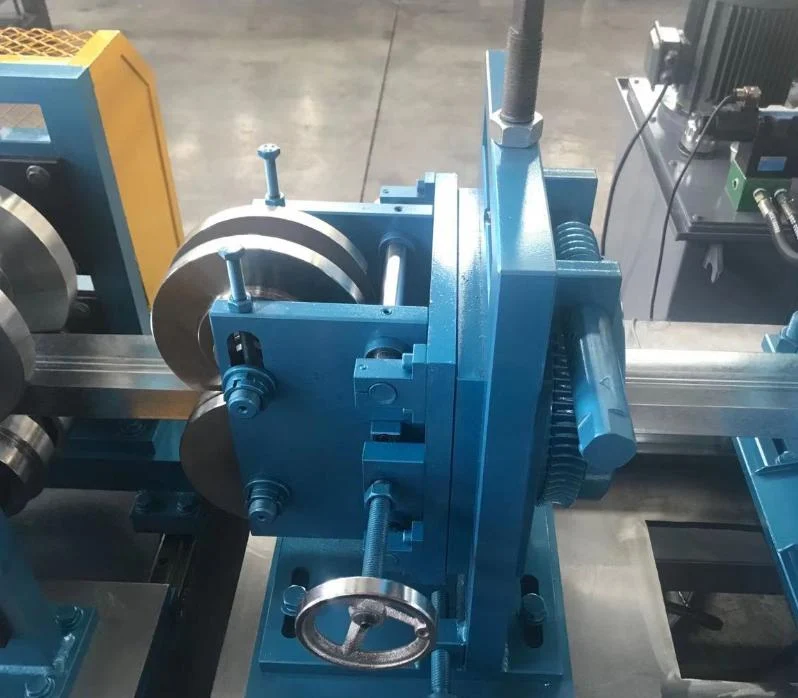

Turkey head

For this type machine, if you want to know more information, please contact us at any time.
