Fully automatic Zee purline rolling forming machine allows you to do the production in batch and fully automatic.
Detailed Content
Fully automatic Zee purline rolling forming machine

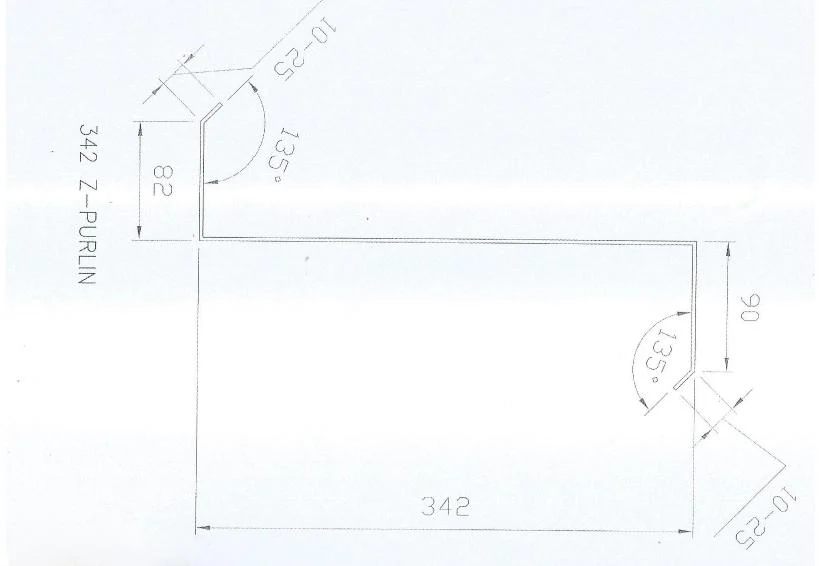

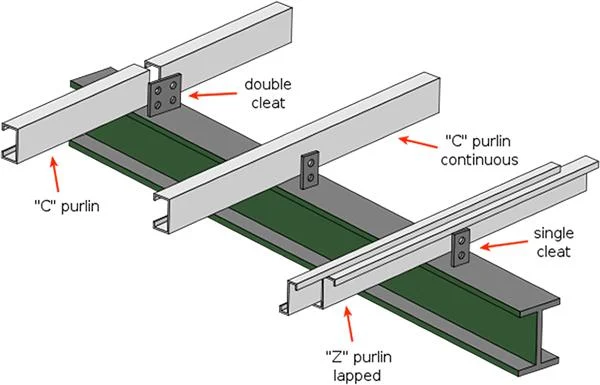

Fully automatic Zee purline rolling forming machine is professionally designed to make the Z purline in batch. It allows to do online punching, online punching logos. It composed by the following elements: decoiler, guiding platform,main machine of roll forming, cutting device, electric motor,hydraulic station,Delta PLC control system, run out table. Take the following drawing profile for example:
Z purline machine working process:

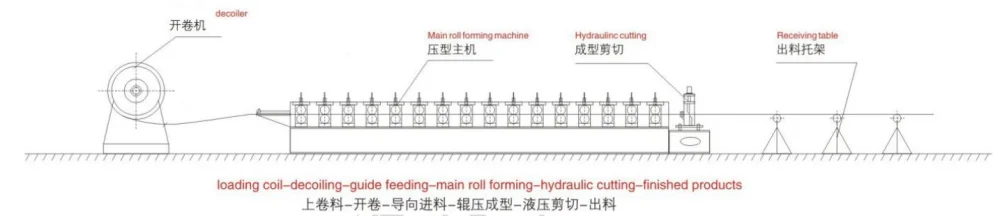

Decoiler→ → Feeding material into machine →Roll forming machine →Measure length →Hydraulic cutting →Finished Products

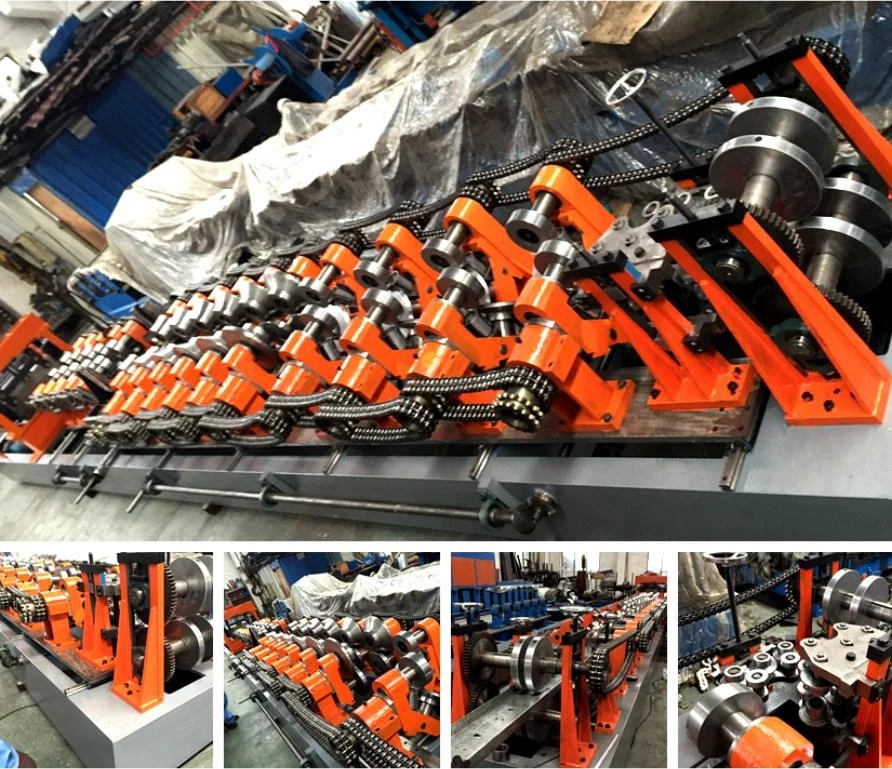

Zee purline rolling forming machine:
Fully Automatic Changed Z Shape Purlin Roll Forming Machine:
Main Technic Parameter:
| Size | 7800*1500*1600mm |
| Weight | 9000KGS |
| Voltage | 380V/60HZ/3PH |
| Hydraulic Motor Power | 22KW |
| Motor Power for auto adjustment size | 0.37KW*2+0.75KW |
| Motor Power for auto guide device | 0.18KW*2 |
| Motor Power for auto adjustable hole distance device |
0.18KW*2 |

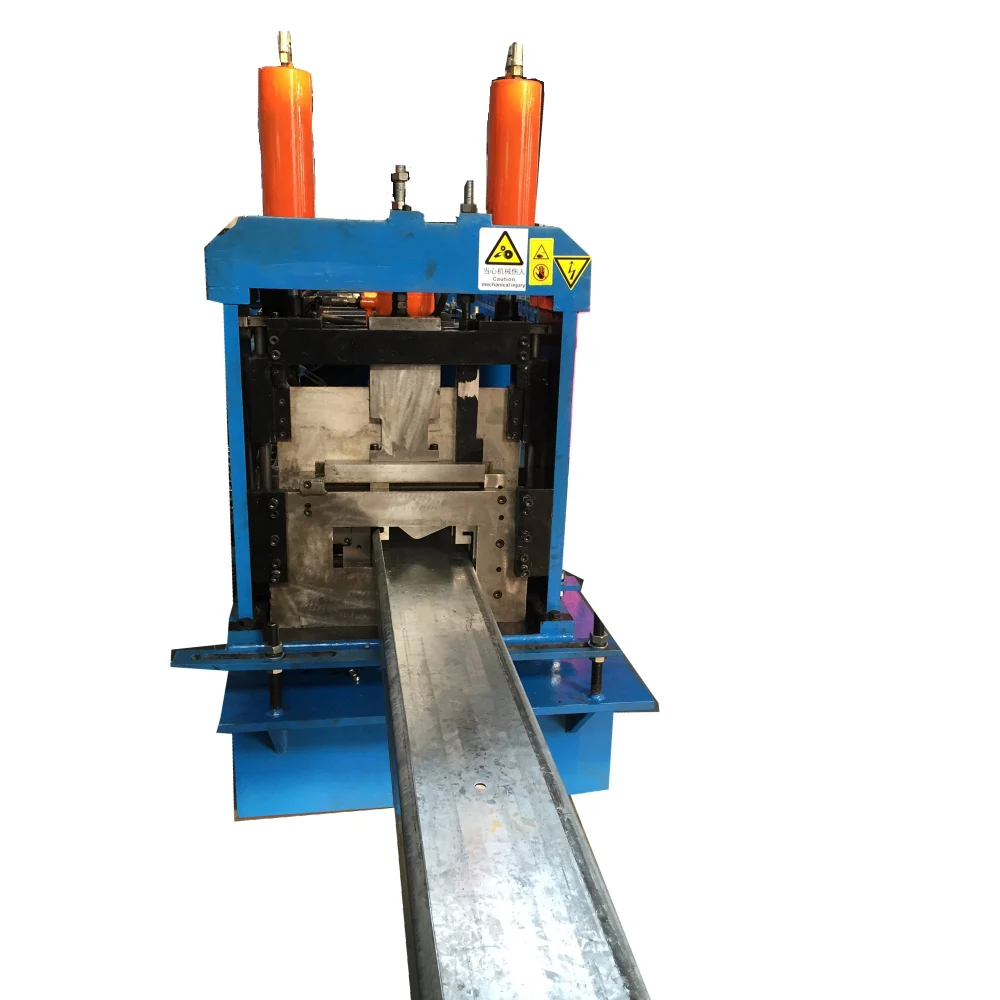

| Forming Steps | 13steps+3steps for reshaping |
| Forming Speed | 15m/min |
| Edge for Z purline | 15-25mm |
| Height of Z Purline | 30-70mm |
| Width of Z Purline | 100mm-300mm |
| Forming Thickness | 1.0-3.0mm |
| Tolerance for cutting | ±2.0mm |
| Tolerance for Forming | ±2.0mm |
| Straightness | 2mm/m |
| Material for All Roller | Gcr15 steel with heat treatment |
| Material of principal axis | High grade 45# forged steel |
| Sprocket wheel | 45# steel high-frequencies quench |
| Cut-off system | Hydraulic cutting device |
| Material for Blade | Cr12 mold steel with quenched treatment 60-62°C |
| Material for frame of machine | Fine welded structural steel; |
| Material for producing the Z Purline |
GI Steel with Min.420 Mpa ( JIS G 3302 SGC440 OR EN 10346 S350GD ) |
| Painted Color | Red or Customization |
Main Accessories:
| (1) Main Purline Forming Machine; |
| (2) 5 Tons Manual Uncoiler ; |
| (3) Automatic Guide Device; |
| (4) Hydraulic Motor System; |
| (5)PLC Computer Controlling System With Touch Screen ; |
| (6) Automatic Adjustable Hole Distance Device; |
| (7) Hydraulic Pre-punching Holes Device; |
| (8) Hydraulic Pre-cutting Device |
| (9) Reshaping Device; |
| (10) Rib Rollers; |
| (11) Run Out Table(10 pcs); |
| (12) Tools; |
| (13) Operation Manual,drawing for changing parts |
| (14) Free supply 10pcs bearing, 1.5m chain, 10pcs chain connection pins; |
| (15) Operation Manual. |
Here is the Z purline using manual in working status.
