High speed C purline 4 to 5mm thickness rolling machine
Normally speaking for the C purline machine, we only use the common thickness from 1.5 to 3.0mm. But some time we do need the thickness from 3 to 5.0mm, based on the need, Zhongtuo cold rolling forming machinery designs machine for this type C purline making.
Meanwhile as to the rolling forming machine of C purline, the speed of 25 meter is normal, but for some developing countries, the worker salary is very high, then the high speed C purline machine will be good for them like the machine here, we can share the some more information of it.

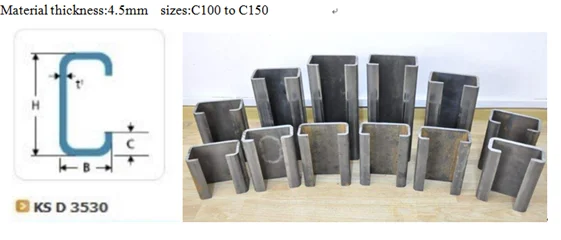

Take the following drawing profiles and sizes for your reference:

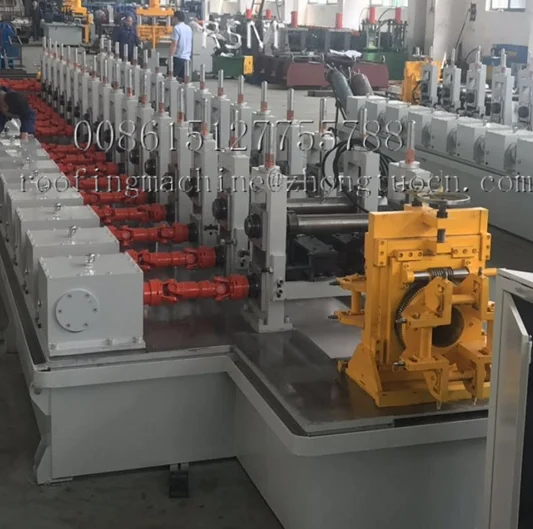

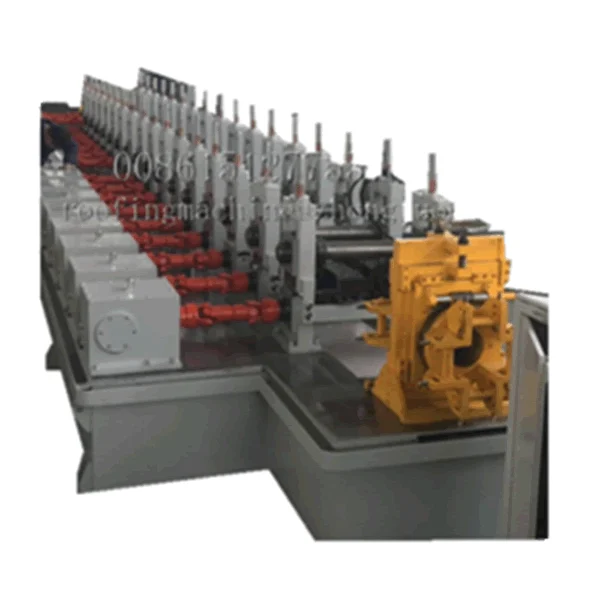

We design the high speed C purline rolling machine like following:
High speed C purline 4 to 5mm thickness rolling machine working flow:
8 Ton hydraulic decoilerà Bridge overfillà leveling machineà shearing and butt welderà Horizontal spiral looperà guiding system->second levelingàmain rolling forming machineà servo flying tracking cutting sawà Intelligent roller table (automatic spray booth customer self-contained)à Smart flip 180 degree buckleà 10 meter stackerà Intelligent roller conveyor to feed material to the blanking area - manual packaging
I will take some elements of the high speed C purling machine showing here to explain why the machine can reach 50 meter per minute even if handling the thickness of 4 to 5.mm.
It uses the online shearing butter welder to make the machine non stop but welding online.
1.Shear and butt welding unit:Function

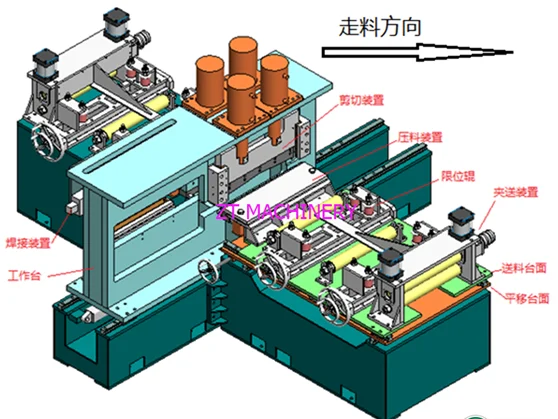

This part consists of hydraulic pinch rollers, guide unit, movable plate, hydraulic shear and welding unit. It is used to shear the head and the end of the steel strip and weld. Easy operation and high degree of automation improve work efficiency.
2.Spiral accumulator:
Function: as to stock the coil for matching the high speed of the working of machine. Or else you have to stop machine and then weld it.

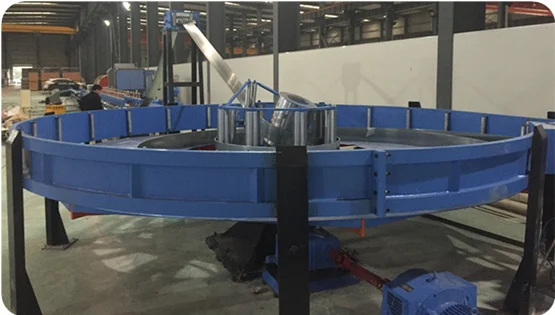

The composition of the lopper: bogie, feeder, lopper, high-turning bracket, electrical 3.control cabinet.
Bogie function: the strip is led from flat to vertical to the feeder. 30°-60° steering is adjustable.
Angle nip roller: Φ100mm*500mm*2, 45# seamless steel tube, quenching and quenching, HRC46-50, surface polishing.
Roller: Φ63mm*200mm*2 (solid core), 45# seamless steel tube, quenched and tempered, HRC46-50, surface polished.
10 meter smart palletizer

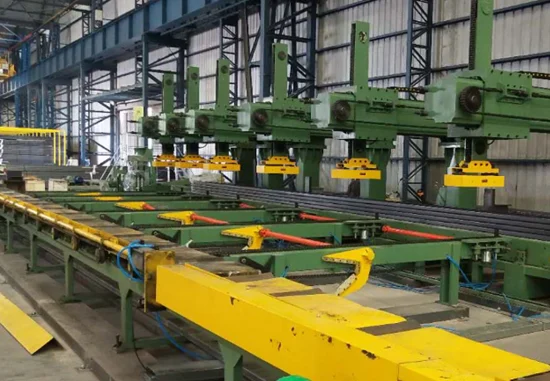

The equipment consists of a blanking roller, a reverse chain, a flattening mechanism, a suction cup palletizing, a plate chain conveying, a fully automatic baler, a discharge roller, and a discharge chain. The device has the advantages of high degree of automation, efficient stacking of strokes, and the like.
The unloading roller path is driven by the conveying motor to drive the conveying roller to transport the profile. After the profile reaches the position, the blanking cylinder drives the pushing plate to push the profile out.
The flattening mechanism is composed of a base, a flattening cylinder, a guiding mechanism, a pushing plate, an adjusting hand wheel and the like. Before the profile is lifted on the reverse chain, the guide plate drives the push plate to push the end of the row of profiles to the flush, ensuring that the end faces of the profile after the palletizing are flush.
Normally speaking for the C purline machine, we only use the common thickness from 1.5 to 3.0mm. But some time we do need the thickness from 3 to 5.0mm, based on the need, Zhongtuo cold rolling forming machinery designs machine for this type C purline making.
Meanwhile as to the rolling forming machine of C purline, the speed of 25 meter is normal, but for some developing countries, the worker salary is very high, then the high speed C purline machine will be good for them like the machine here, we can share the some more information of it.

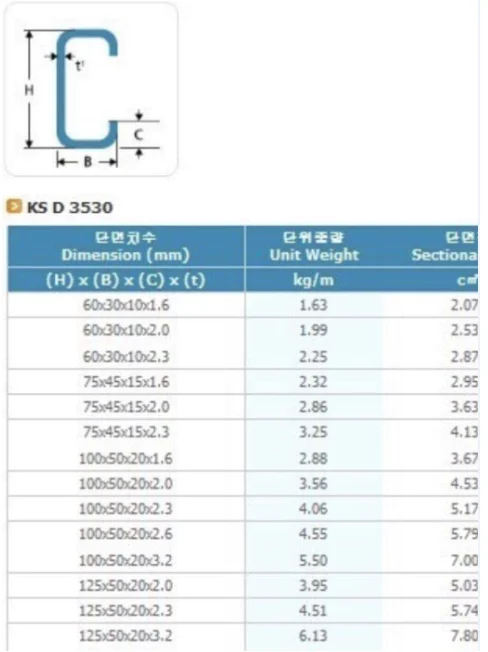

Take the following drawing profiles and sizes for your reference:
We design the high speed C purline rolling machine like following:
High speed C purline 4 to 5mm thickness rolling machine working flow:
8 Ton hydraulic decoilerà Bridge overfillà leveling machineà shearing and butt welderà Horizontal spiral looperà guiding system->second levelingàmain rolling forming machineà servo flying tracking cutting sawà Intelligent roller table (automatic spray booth customer self-contained)à Smart flip 180 degree buckleà 10 meter stackerà Intelligent roller conveyor to feed material to the blanking area - manual packaging
| No | Item Name | Type | Qty |
| 1 | Hydraulic decoiler | 8T | 1 SET |
| 2 | Bridge and leveling | 450x5.0 | 1 SET |
| 3 | Shearing and but welder | 450x5.0mm | 1 SET |
| 4 | Horizontal spiral looper | 5000mm | 1 SET |
| 5 | Main rolling machine Molding frame+ gearbox |
1 SET | |
| 6 | Servo flying tracking saw | 80 MPM | 1 SET |
| 7 | Intelligent roller table | 40 meter | 1 SET |
| 8 | Flip sort | 1 SET | |
| 9 | 10 meter stacker | PLC | 1 SET |
| 10 | Intelligent cutting system | 1 SET | |
| 11 | PLC control system | PLC | 1 SET |
I will take some elements of the high speed C purling machine showing here to explain why the machine can reach 50 meter per minute even if handling the thickness of 4 to 5.mm.
It uses the online shearing butter welder to make the machine non stop but welding online.
1.Shear and butt welding unit:Function
This part consists of hydraulic pinch rollers, guide unit, movable plate, hydraulic shear and welding unit. It is used to shear the head and the end of the steel strip and weld. Easy operation and high degree of automation improve work efficiency.
2.Spiral accumulator:
Function: as to stock the coil for matching the high speed of the working of machine. Or else you have to stop machine and then weld it.
The composition of the lopper: bogie, feeder, lopper, high-turning bracket, electrical 3.control cabinet.
Bogie function: the strip is led from flat to vertical to the feeder. 30°-60° steering is adjustable.
Angle nip roller: Φ100mm*500mm*2, 45# seamless steel tube, quenching and quenching, HRC46-50, surface polishing.
Roller: Φ63mm*200mm*2 (solid core), 45# seamless steel tube, quenched and tempered, HRC46-50, surface polished.
10 meter smart palletizer
The equipment consists of a blanking roller, a reverse chain, a flattening mechanism, a suction cup palletizing, a plate chain conveying, a fully automatic baler, a discharge roller, and a discharge chain. The device has the advantages of high degree of automation, efficient stacking of strokes, and the like.
The unloading roller path is driven by the conveying motor to drive the conveying roller to transport the profile. After the profile reaches the position, the blanking cylinder drives the pushing plate to push the profile out.
The flattening mechanism is composed of a base, a flattening cylinder, a guiding mechanism, a pushing plate, an adjusting hand wheel and the like. Before the profile is lifted on the reverse chain, the guide plate drives the push plate to push the end of the row of profiles to the flush, ensuring that the end faces of the profile after the palletizing are flush.
