High-Speed 6mm × 3.0m Plaster Beacon Roll Forming Machine Automatic Plaster BeaconM6 M10 Production

Produce high-quality 6mm × 3.0m plaster & screed beacons efficiently with our fully automatic roll forming machine. Stable quality, adjustable speed, PLC controlled, ideal for wall and floor leveling.

Detailed Content



Turn Galvanized Steel Coils into Profitable Plaster & Screed Beacons

In modern construction, speed, precision, and consistency define competitiveness.

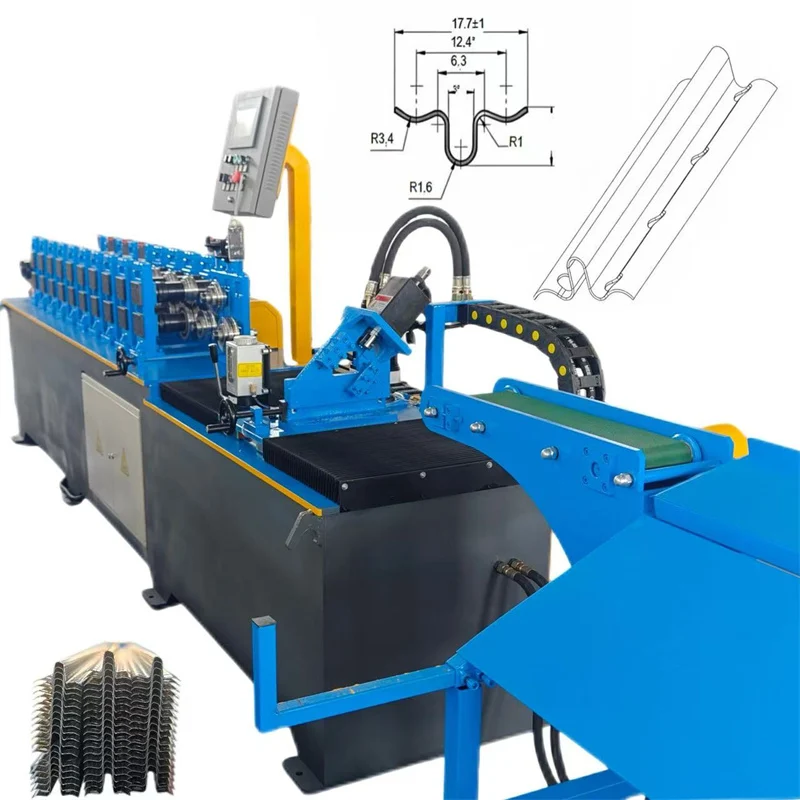

The 6mm × 3.0m Plaster Beacon Roll Forming Machine allows manufacturers to produce galvanized plaster and screed beacon profiles efficiently, reducing labor costs and increasing output.

Ideal for:

  • Residential, commercial, and industrial wall plastering

  • Floor screed leveling

  • Concrete surface alignment
    fff5f44b4319d6b6912de4e629802133 1786094684 1B7e

Key Benefits for Manufacturers

  • High Production Efficiency — capable of large-volume orders

  • Stable Product Quality — uniform dimensions and straightness

  • Low Labor Requirement — fully automatic operation

  • Cost-Effective Production — reduced waste and maintenance

  • Flexible Customization — adjustable profile size, length, and speed

Fully Automatic Workflow

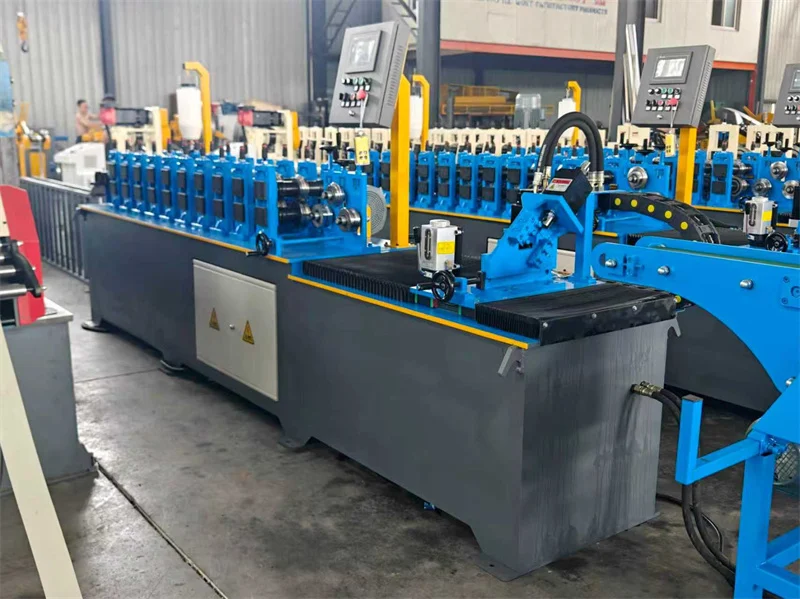

The production line integrates decoiling, punching, roll forming, cutting, and collecting into one seamless process. All operations are controlled by a PLC system, ensuring continuous output and stable product quality.
2476bdfc41ffbc8de64f6af876f388d0 1786094687 DHMG

Item Specification

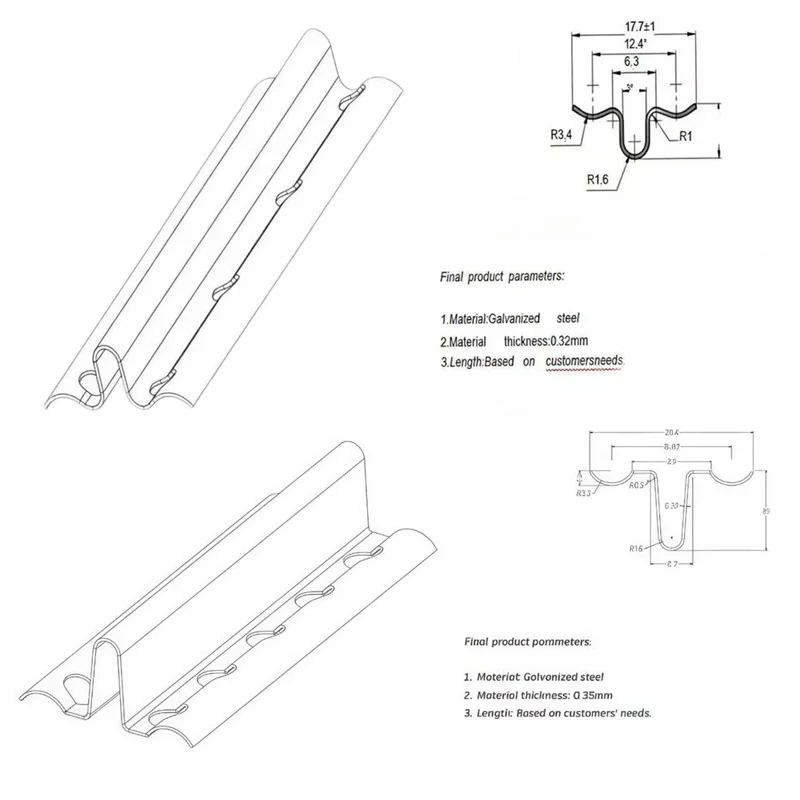

Finished Product Plaster Beacon / Screed Beacon Profile
Beacon Height 6 mm
Standard Length 3.0 m (Customizable)
Raw Material Galvanized Steel (GI)
Material Thickness 0.30 – 0.32 mm
Decoiler Type Hydraulic Automatic Decoiler
Decoiler Capacity 3 Tons
Coil Inner Diameter Ø450 – 550 mm (Adjustable)
Punching System High-Speed Punching with Servo Feeder
Punching Pressure 55 Tons
Roll Forming Stations 10 Rows (Customizable)
Roller Material GCr12, Quenched & Chrome Plated
Shaft Diameter Ø50 mm Solid Shaft
Cutting Method Hydraulic Servo Tracking Cutting
Cutting Blade Material Cr12MoV
Length Tolerance ±0.5 mm / 3 m
Control System PLC Automatic Control
Max Forming Speed Up to 70 m/min (Adjustable)
Main Motor Power 7.5 kW
Hydraulic Power 3 kW
Power Supply 380V / 50Hz / 3 Phase (Customizable)
Product Collecting Table 3 m with Conveyor
Machine Weight Approx. 3 Tons
Application Wall Plastering, Floor Screed, Construction Leveling

3089f793e81f68fb19575e61cca7e27b 1786094689 C7wz
Main Components

1. Hydraulic Decoiler

  • 3-ton capacity

  • Adjustable coil inner diameter: Ø450–550 mm

  • Continuous, stable feeding

  • Manual decoiler included as backup

2. High-Speed Punching System

  • 55-ton punching press

  • Servo-controlled NC feeder

  • Cr12 molds for precise hole edges

3. Guide Feeding Device

  • Stainless steel + rubber rollers

  • Manual fine adjustment

  • Prevents material deviation
    f4eaff5af8e36a15240ba6a62f36fc82 1786094691 tGHw

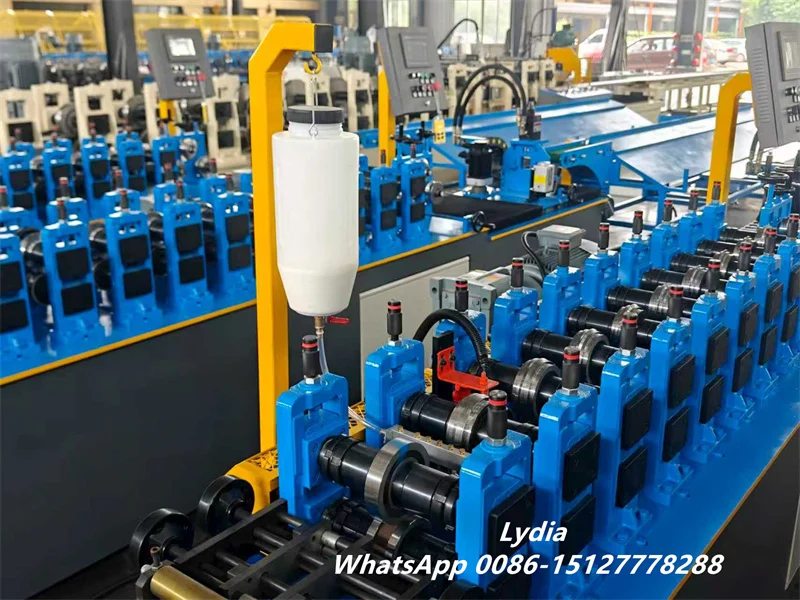

4. Roll Forming Section

  • 10 forming stations

  • GCr12 rollers, quenched & chrome plated

  • Ø50 mm solid shafts

  • Heavy-duty welded frame
    097e09c7914b0188893882dbdddbba26 1786094693 iKo8

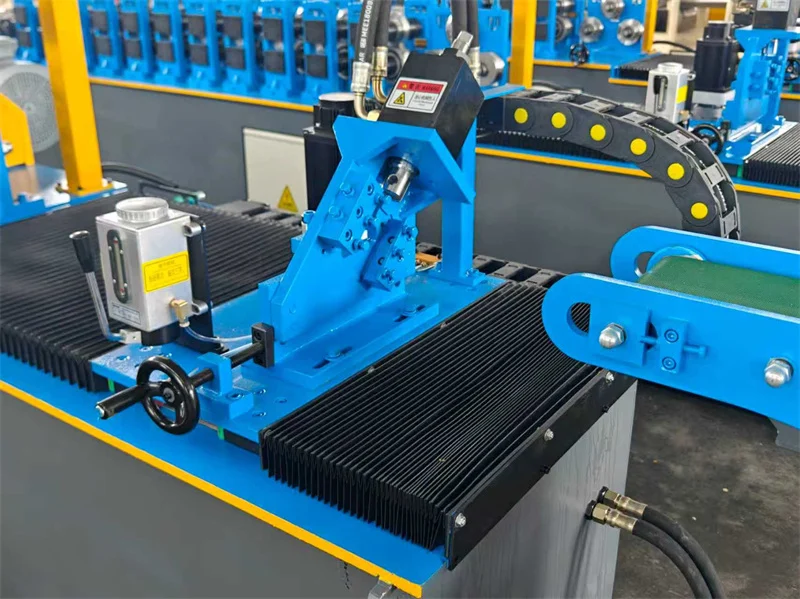

5. Servo Tracking Cutting

  • Hydraulic servo flying cut

  • Cr12MoV blade

  • No burrs or profile deformation

6. PLC Control System

  • Fully automatic operation

  • Batch, length, and quantity settings

  • Multi-language support

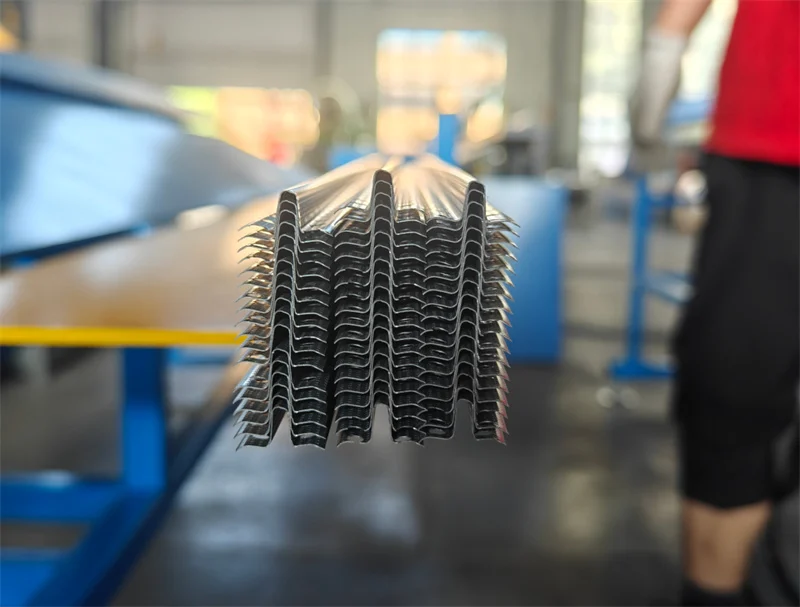

7. Product Collecting Table

  • 3 meters length with conveyor

  • Hydraulic pusher

  • Reduces manual handling and improves safety
    7458f017bf4b1567244fbd607cc06bb5 1786094696 2rc6

Applications of Zhongtuo Plaster & Screed Beacons Roll Forming Machine

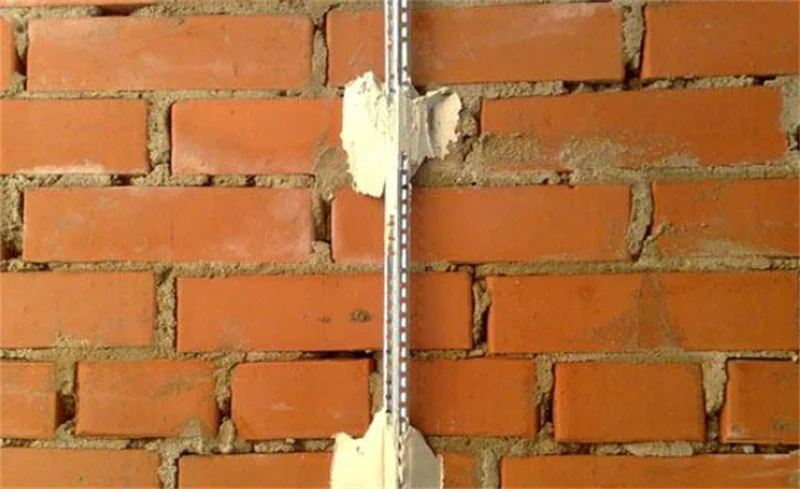

  • Wall plaster leveling

  • Floor screed installation

  • Concrete surface alignment

  • Residential and commercial renovation projects

  • Industrial construction finishing
    231b0dc6f8e05b9e06aa918d32819e48 1786094698 pnUn

Why Choose This Machine

  • High-speed production, up to 70 m/min

  • Stable, straight, and precise profiles

  • Reduces labor costs and material waste

  • Fully customizable for different markets

  • Quick ROI for factories producing plaster beacons

Request a Quotation

5ef2bcf4e1df97638990be1b0378b43f 1786094700 sXdh

We provide:

  • Technical proposal

  • Production line layout

  • Quotation and delivery schedule

  • Real machine operation videos

Contact us today to start your efficient plaster beacon production line.
