A Double Line Drywall Machine is a specialized piece of equipment used in the construction industry for the automated production of drywall and ceiling profiles. This machine is designed to manufacture metal profiles that are commonly used in the construction of walls and ceilings, particularly for partition walls and suspended ceilings.Double Line Drywall Machine of Details Information.

Technical Specifications For a U Track, including:

1. Material: Galvanized steel, with a yield strength of 50 ksi.
2. Width:
   - 43mm / 53mm / 65.5mm / 94mm / 154.5mm
   - (Equivalent imperial sizes: 1-5/8", 2.0", 2.5", 3.625", 6.0")
3. Flange Size:
   - Ranges from 12.7mm to 38mm (0.5" - 1.5")
4. Thickness:
   - 0.45mm - 1.0mm, corresponding to 25 - 20 gauge steel
5. Yield Strength:
   - Maximum of 80 ksi (550 MPa)
Other Features of Double Line Drywall Machine :
- 15° angle, likely for structural stability.
- Pre-punched holes, possibly for cable or pipe installations.
- Primarily used in framing or support structures, such as light gauge steel systems.
These U tracks are commonly used in construction applications, including light steel framing, partition systems, and ceiling installations.

Machine Flow Chart Layout：

Double Head Manual Decoiler
1. Work type Passive type
2. Structure Steel channel welded for basic frame
3. Usage To support the coil and make the uncoiling
4. Loading capacity 1.5 tons
5. Inner diameter 450-550mm (manual adjustment)
6. Brake system Manual brake


2: main roll forming machine
Work speed: 40m/min
Roller station: 11 station + 11 station
Machine structure: Arch structure  (More strengthening and produce more neat production)
Machine basic frame: Steel plate welded
Work power: 5.5kw + 5.5kw
Drive mode: by chains
Punching logo: 1 punching unit + 1 punching unit

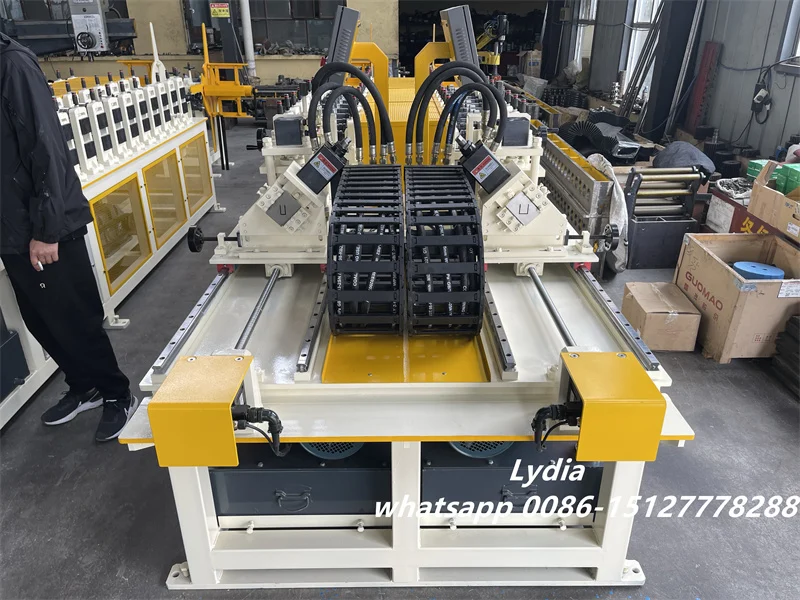

More pictures of the machine：
