Steel Stud Framing System roll forming machine Stud Joist Blocking C stud punching holes grouting keel rolling machine
Super Stud Joist Blocking provides bracing against twisting and horizontal movement, and when properly installed can allow joists to achieve full capacity. Each blocking piece has an access hole to allow for utilities to pass through, and includes tabs on each end for attachment to joist flanges.
The grouting keel is made by rolling galvanized steel strips or thin steel plates through multiple processes using a special rolling mill. It has high strength and permeability. It has the advantages of strong usability, good fire resistance, and easy installation, and can be used to assemble various types of gypsum boards, calcium plastic boards, sound-absorbing boards, etc. Supported by partition walls and keels, it is aesthetically pleasing. It is widely used in various civil construction projects and light textile industry sites, etc. So, it has a good effect on indoor styling, sound insulation, and other functions.
Material: galvanized steel plate/aluminum zinc plated steel
Thickness (mm): 0.6~1.5mm

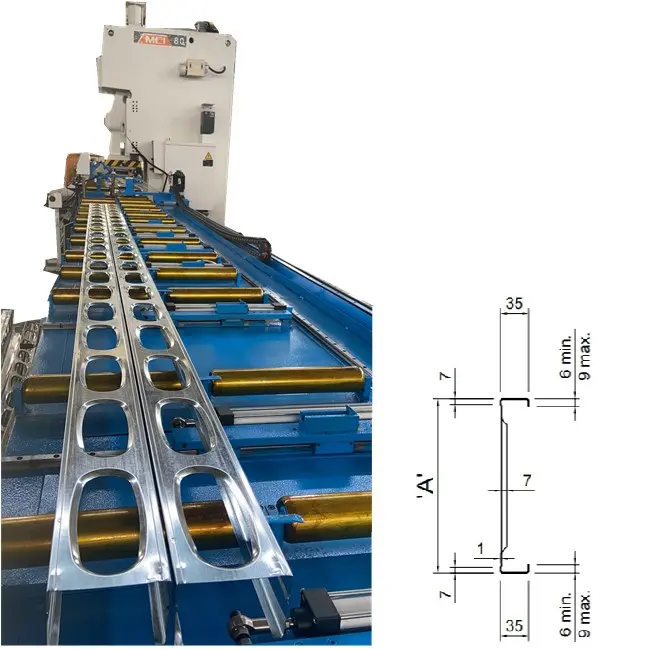

Application scope: secondary structure household division, frame structure, frame shear structure filling partition, factory firewall, cold storage insulation wall Here is the drawing profile for your reference:

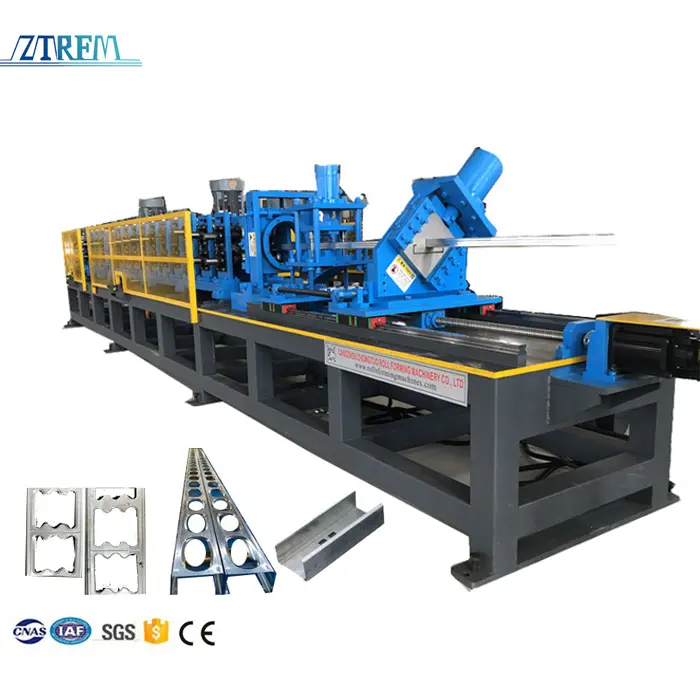

| Metal stud machine | ||||
| 1.Formed Material | PPGI,GI,AI | Thickness:0.5-1.5mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 16 rows(As your requirement) | ||
| Diameter of shaft | 50mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | Gear transmission | |||
| Dimension(L*W*H) | 5500*800*1200(customize) | |||
| Weight | About 4.5T | |||

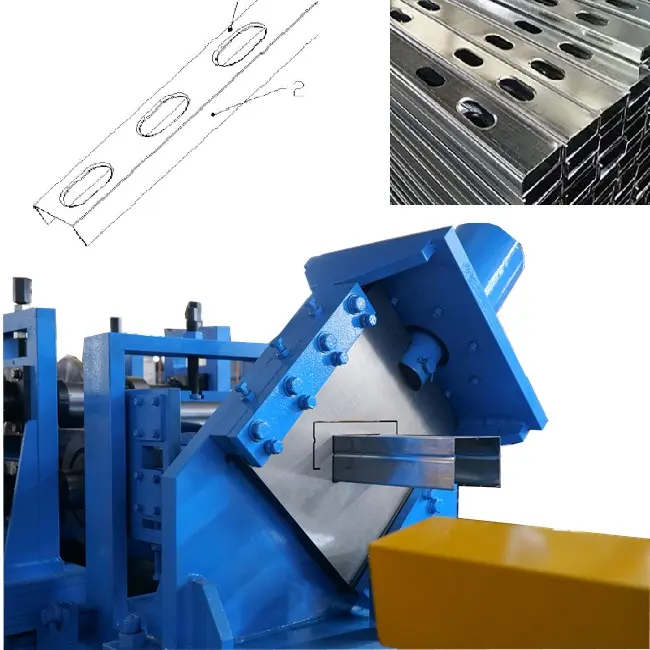

| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW*2 sets | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 40-45m/min(customized) | The speed depends on the shape of the tile and the thickness of the material. | ||
