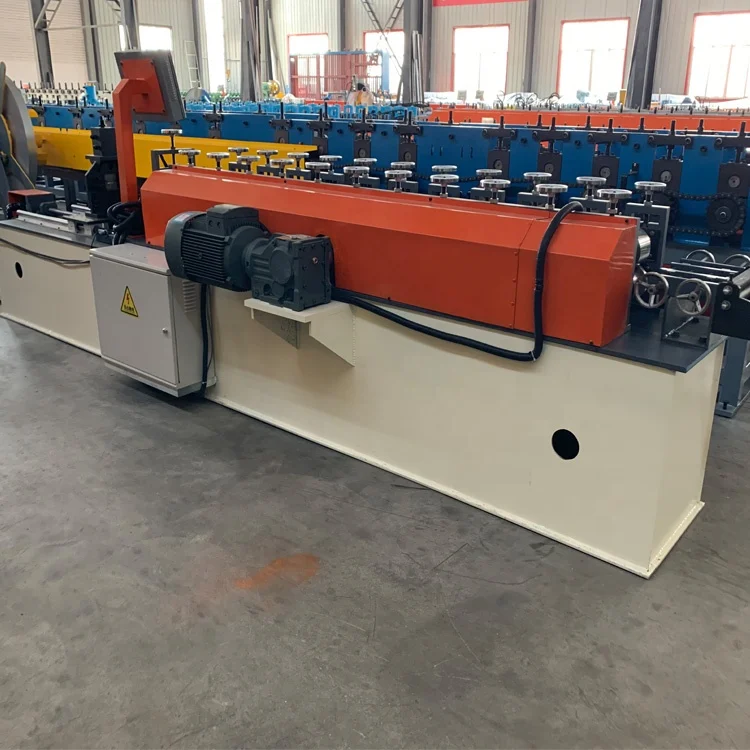

Metal furring channel machine hat channel roll forming machine steel omega profile making machine

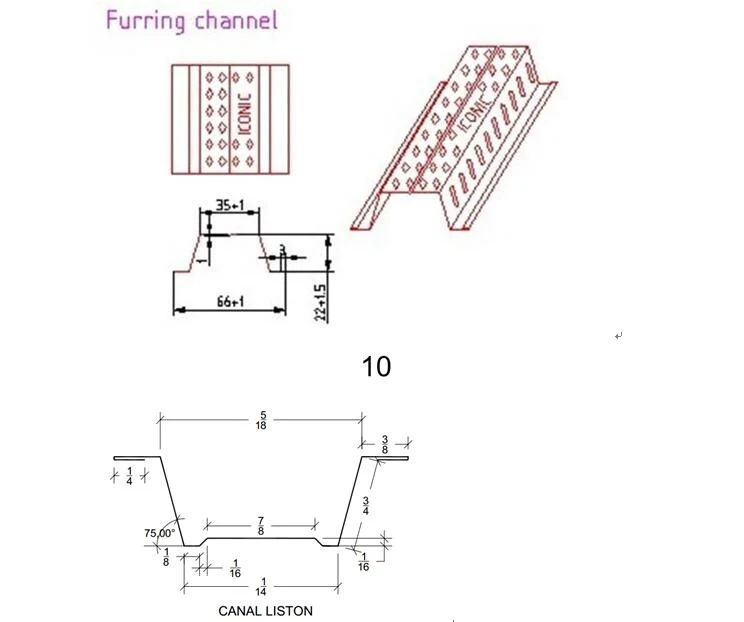

High-speed Metal furring channel roll forming machine is used for the production of ceilings and partition wall keels. Compared with cement buildings and wooden structures, light keels are lighter and more durable. Due to these advantages, C/U joists are popular in the field of construction.
The Metal hat channel roll forming machine also could punch hole, press or inject logo on the finished product. Work speed is fast , it can up to 70m per minutes or 100m per minutes and easy operation by PLC control, only one person can operate it.

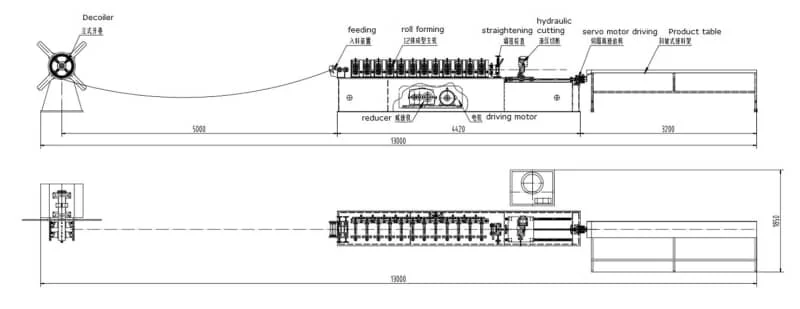

Steel furring channel roll forming machine parameters
| 1 | Suitable raw material to process | (Prepainted)galvanized steel strips |
| 2 | Rollers | Normally 12-16 rows of rollers, Bearing steel finishing |
| 3 | Shaft metarial | 45# forging steel with chromium plate |
| 4 | Main frame | Square tube wedding |
| 5 | Transfer method | Gear drive/ gearbox drive |
| 6 | Wallboard | Memorial arch |
| 7 | Dimensions | 6.5*0.8*1.5m |
| 8 | Weight | About 2.5T |
| 9 | Motor power | 5.5/7.5/11.5kw, k serious |
| 10 | Thickness of the plate | 0.3mm-1mm ,or as customer requirement |
| 11 | Forming speed | 40-60m/min |

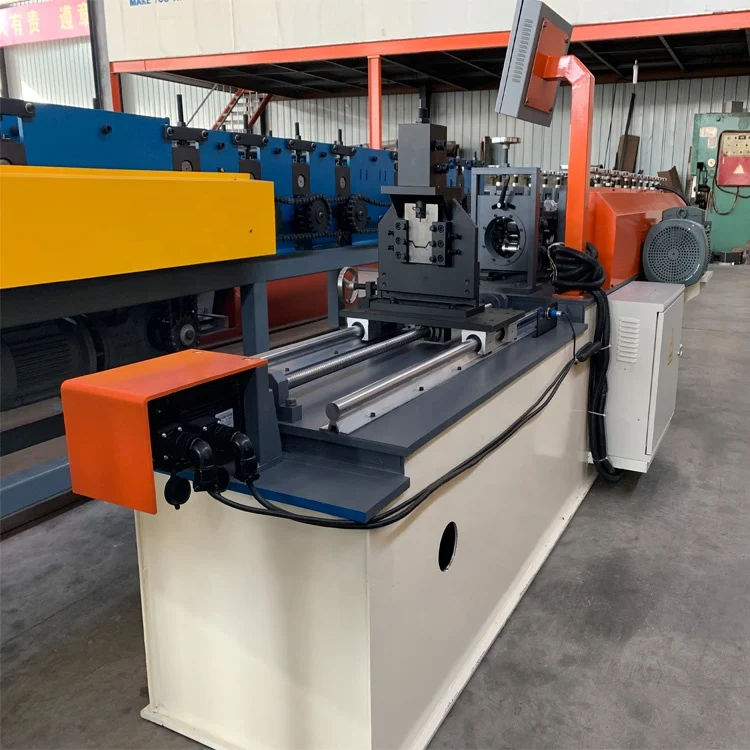

| 12 | Cutting type | Servo tracking cutting |
| 13 | Cutting blade materials | Cr12,Quenching treatment 60-62℃ |
| 14 | Control system | PLC control, Delta/Siemens Brand |
| 15 | Voltage | 380V 50Hz 3phases，or as customer |
