Gypsum board drywall metal stud and track CW UW profiles machine

Gypsum board drywall metal stud and track CW UW profiles machine
Gypsum board drywall metal stud and track CW UW profiles machine widely used in the building material production filed, the products produced by our roll forming machines are clean and straight, and this kind of the light steel profiles are easy use for the final application.

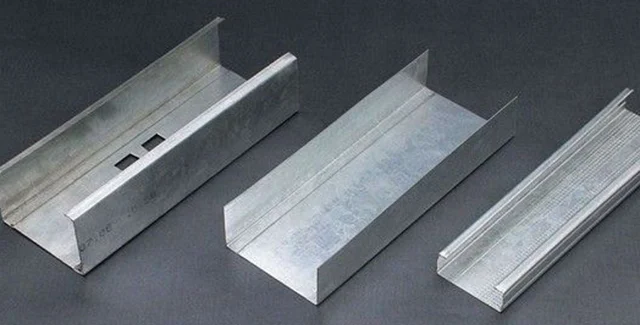

Here are the drywall profile drawings and product photo for you reference:


Main parameters:
Material thickness: 0.3 to 0.8mm
Raw material: galvanized steel
Voltage: 380 v 50 hz 3 phase or customized
Weight of machine: about 4.2 tons
Machine working space: about 12 m x 1.5 m x 1.5m
Working speed:
30 m per minute with holes punching
40m per minute without holes punching

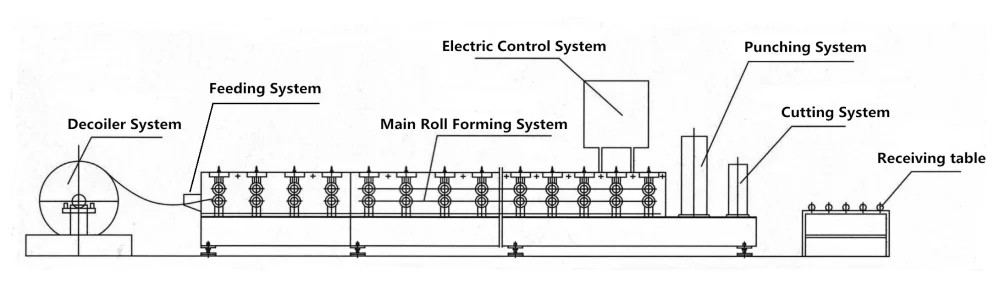

Machine components:

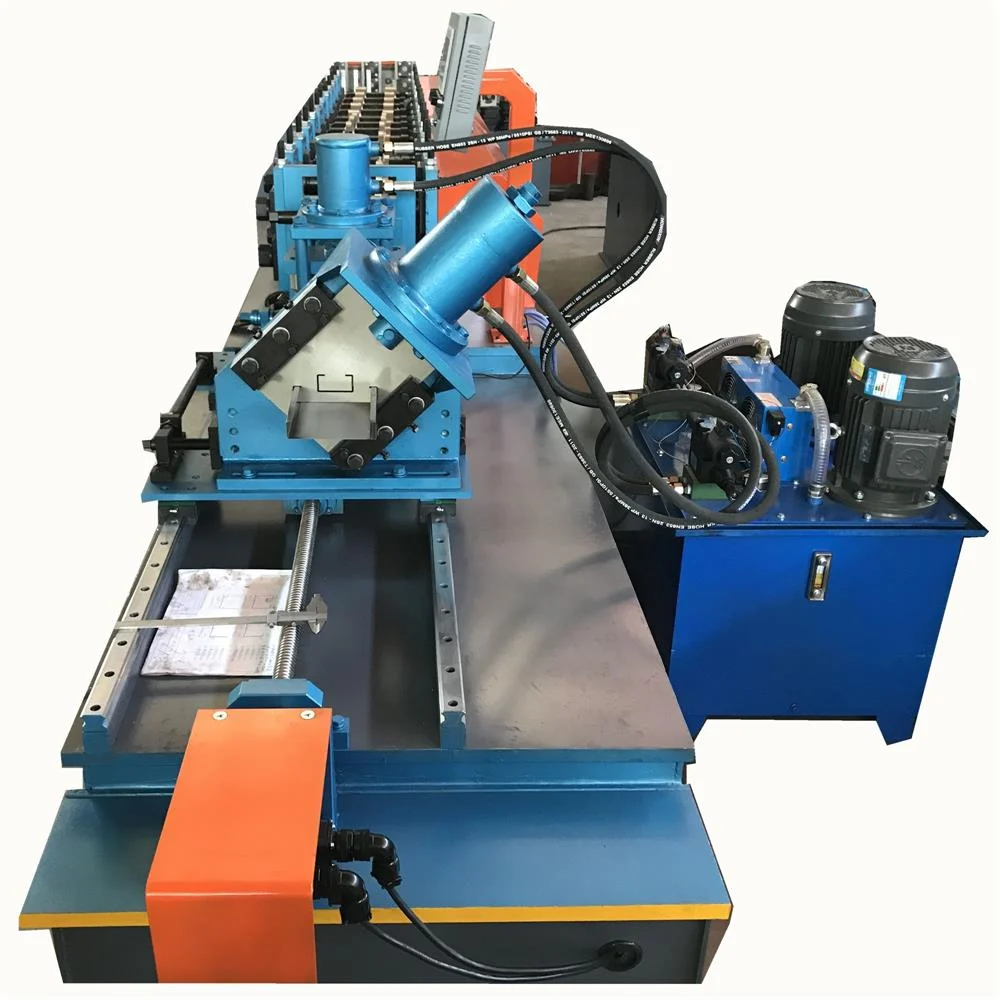

Manual decoiler 1 set; Main roll forming machine (feeding-forming-punching-cutting) 1 set; Receiving table 1 set;
Hydraulic station 1 set; Control computer 1 set; Maintain tools 1 set; Operation manual and spare parts as so on.

Main Roll Forming System:
Size of main part: about 5.5m х 1.0m х 1.2m
Weight of main part: 4.0 t
Main motor power: 5.5 kw
Voltage: 380 v 50 hz 3 phase or customized
Frame type: memorial arch
Transmission type: by gear
Material of rollers: GCr12mov
Material of shafts: 45# steel
Diameter of shafts: φ 50 mm
Number of rollers: 12 rollers
Raw material: galvanized steel
Material thickness: 0.3-0.8 mm
Working speed:
30 m per minute with holes punching
40m per minute without holes punching

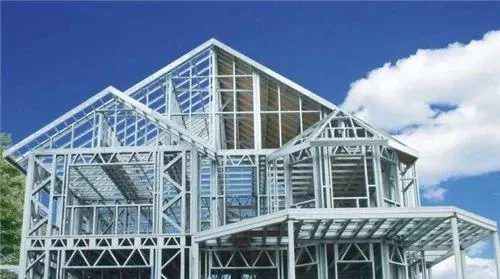

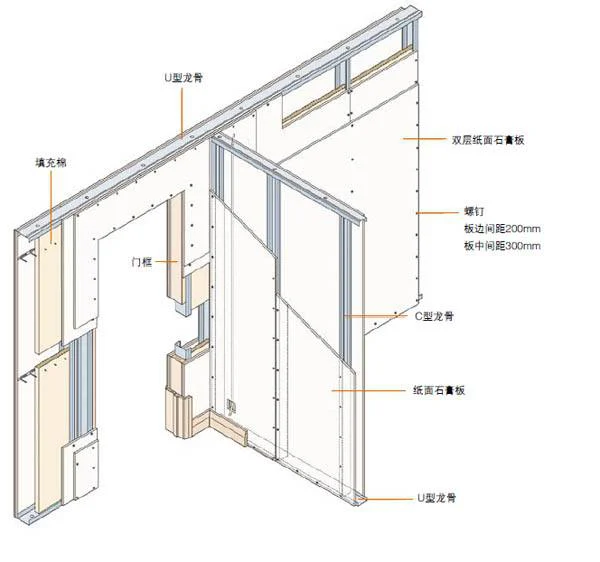

Here below are the application photos for you reference:
