Indonesia Omega Metal track Hat stud dryawall roll forming machine
Indonesia Omega Metal track Hat stud dryawall roll forming machine

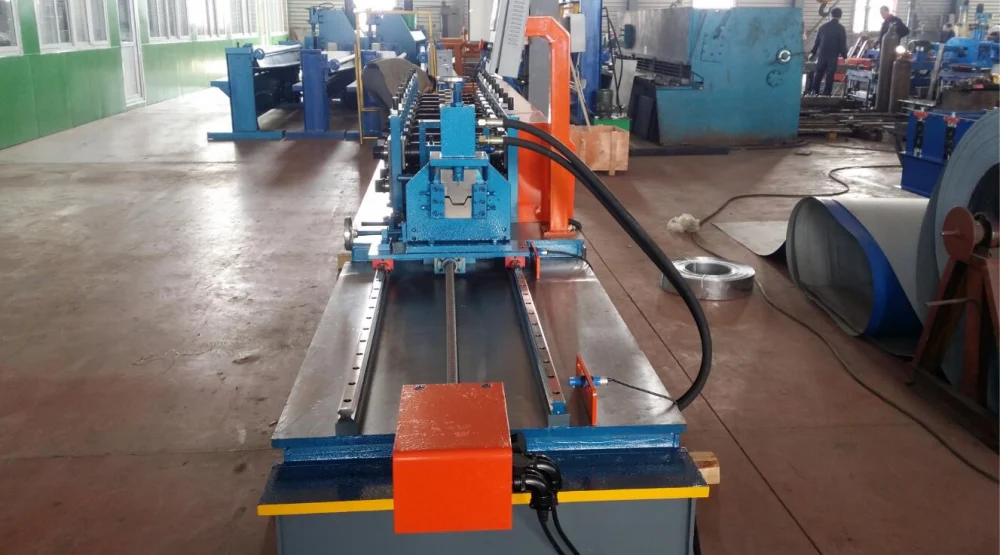

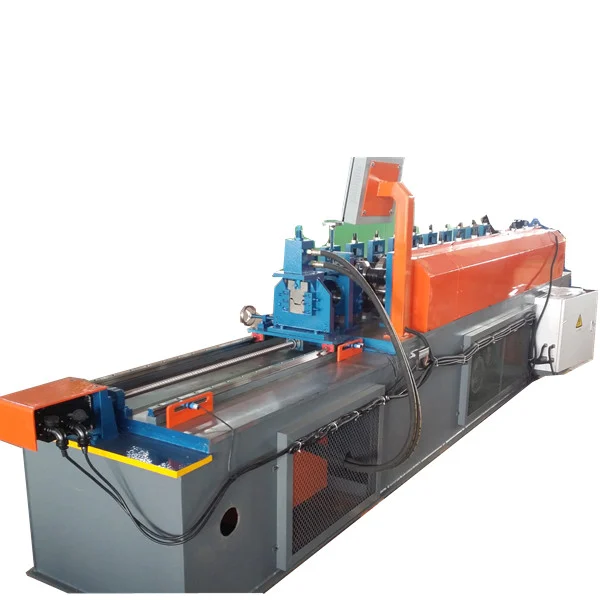

Indonesia Omega Metal track Hat stud dryawall roll forming machine is designed to make the Omega track in batch fully automatic.
Detailed Content
Indonesia Omega Metal track Hat stud dryawall roll forming machine

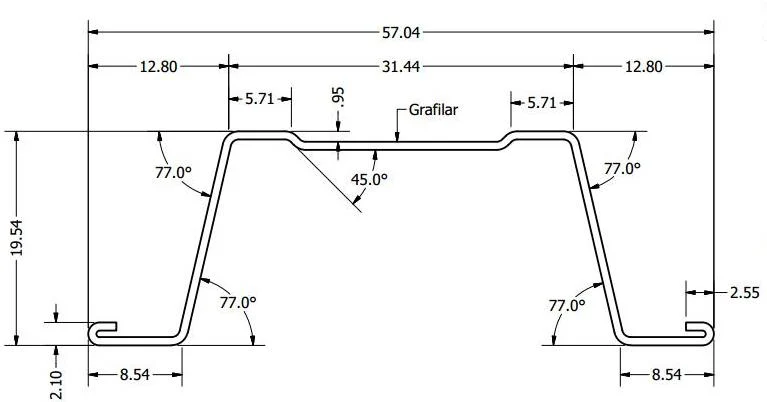

Indonesia Omega Metal track Hat stud dryawall roll forming machine is designed to make the Omega track in batch fully automatic. Omege channel is also called as the furring channel, small hat channel. It is the bearing channel in the drywall building.
This size and design is quite popular in Indonesia.

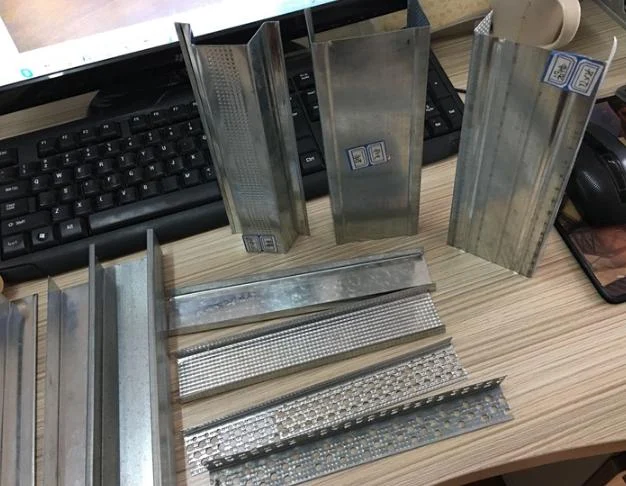

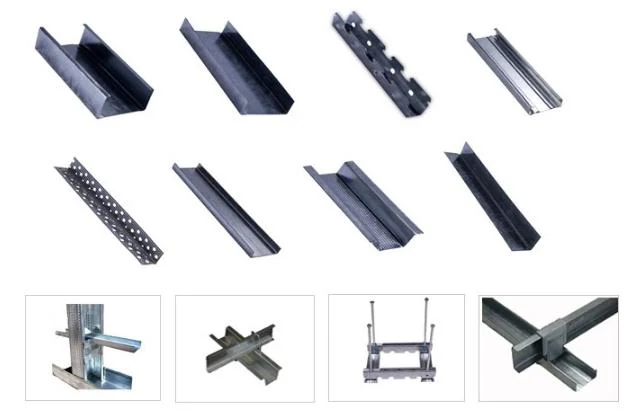

For the Omega Metal track Hat stud when used as the drywall participation, it is also used together with the following elements:
Specifications for Middle East
| Main Channel | 38*12 38*11 38*10 |
| Furring Channel | 68*35*22 |
| Wall Angle | 25*25 24*24 22*22 21*21 30*30 |
| C Stud | 70*35 73*35 70*32 50*35 |
| U Track | 72*25 75*25 52*25 |
Specifications for Auatralia
| Top Cross Rail | 26.3*21*0.75 | |
| 25*21*0.75 | ||
| Furring Channel | 28*38*0.55 | |
| 16*38*0.55 | ||
| Furring Channel Track | 28*20*30*0.55 | |
| 16*26*16*0.55 | ||
| Stud | 64*33.5*35.5 | |
| 51*33.5*35.5 | ||
| 76*33.5*35.5*0.55 | ||
| 92*33.5*35.5*0.55 | ||
| 150*33.5*35.5*0.55 | ||
| Track | 51*32 64*32 76*32 92*32 150*32 | |
| Wall Angle | 30*10 30*30 35*35 |
Specifications for Southeast Asia
| Main Channel | 38*12 |
| Top Cross Rail | 25*15 |
| Furring Channel | 50*19 |
| Cross Channel | 36*12 38*20 |
| Wall Angle | 25*25 |
| Stud | 63*35 76*35 |
| Track | 64*25 77*25 |
Spcifications for America
| Main Channel | 38*12 |
| Furring Channel | 35*72*13 |
| Wall Angle | 25*25 30*30 |
| Stud | 41*30 63*30 92*30 150*30 |
| Track | 43*25 63*25 65*25 92*25 152*25 |
Specifications for Europe
| CD | 60*27 |
| UD | 28*27 |
| CW | 50*50 75*50 100*50 |
| UW | 50*40 75*40 100*40 |
Remark: We offer OEM service for all globle marker, we can produce the products with different sizesas customer require customized.
Based on the knowing the Omega Metal track Hat stud usage, we design the Omega Metal track Hat stud dryawall roll forming machine int the following types:

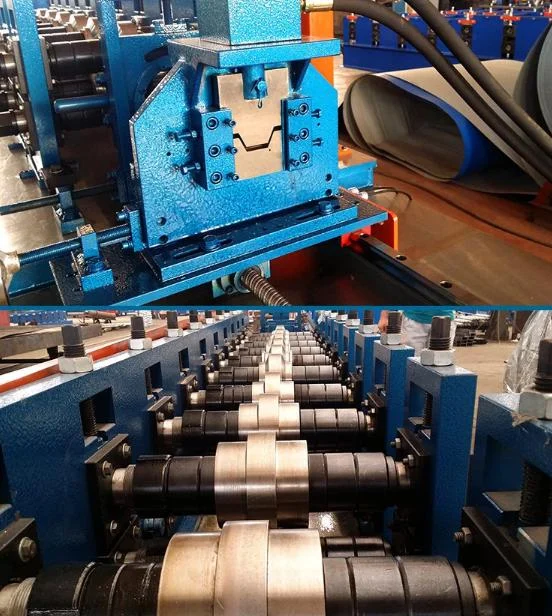

Features of Indonesia Omega Metal track Hat stud dryawall roll forming machine
- It can make the omega metal track in the speed of 25 meters per minute.
- It can make the hat stud in accuract shape and sizes.
- The machine allows you to do the logo punching.
- It can do the punching dots on the metal omege track.
- Long time to us.

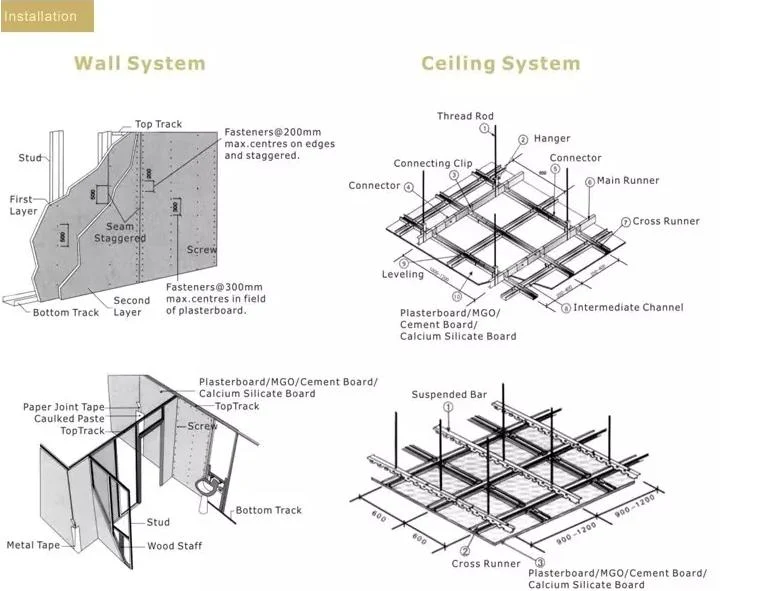

Omega Metal track Hat stud dryawall how to use:
