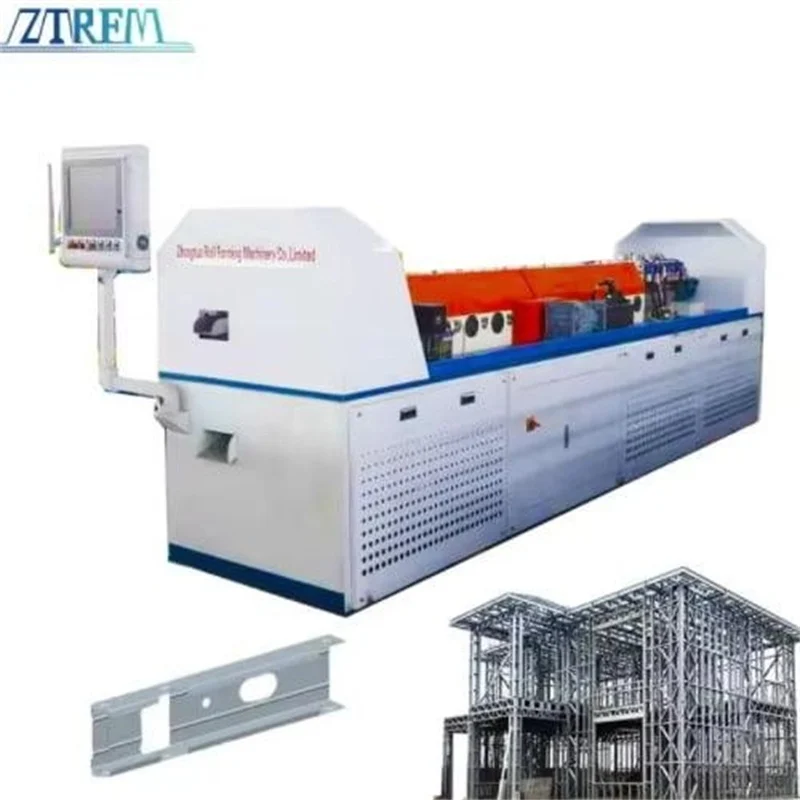

High-Speed C89 Galvanized Steel Former C89 Light Gauge Steel House Lgs Framing Roll Forming Machine

Light Gauge Steel Framing Machine Technical Specification：

Width(web): 89mm
Height(flange): 41mm
Lip:7-12mm The machine match with 3 sets punching die(75~96/138-159/180-200)mm
Material Thickness:0.75-1.2mm,Q235、Q345、G550, hot-rolled galvanized steel strip
Speed: 48m/min
Revised Product Overview: C89 LGS Framing System for Prefabricated Villa Construction
Material: Zinc-coated steel coils
Thickness Capacity: 0.5-0.9mm
Line Speed: 25-30 meters/minute
Power Requirement: 5.5kW main drive
Dimensions: 6000×700×800mm (L×W×H)

Advanced Manufacturing System:

This automated fabrication system integrates precision component production with intelligent building design solutions, specifically engineered for prefabricated light steel structure (LSS) construction. The equipment combines cutting-edge servo drives, hydraulic power units, digital control interfaces, and thermal management components to achieve high-speed precision forming.

Operational Workflow:

1. Coil loading station
2. Automated material feeding
3. Progressive roll forming
4. Programmable cutting unit
5. Finished product output

Key Performance Features:
• Enhanced Production Efficiency: Achieves 300-900 linear meters/hour throughput with optimized mold design
• Precision Engineering: ±0.5mm dimensional tolerance maintained through SKD11 tooling (3M+ cycle durability)
• Intelligent Operation: Touchscreen HMI with CAD/CAM integration for automated drawing interpretation
• Modular Design: Quick-change die sets support multiple functions including perforation, chamfering, and edge trimming
• Energy-efficient Operation: 12-stage forming process with thermal regulation extends equipment lifespan
Structural Advantages:
- Dual reinforcement technology for enhanced load-bearing capacity
- Interlocking vertical/horizontal member compatibility
- Universal accessory compatibility across building systems
- Surface protection maintains material integrity during processing
Compliance & Applications:
Certified to meet Australian/New Zealand building codes (AS/NZS 4600) for cold-formed steel structures. Ideal for:

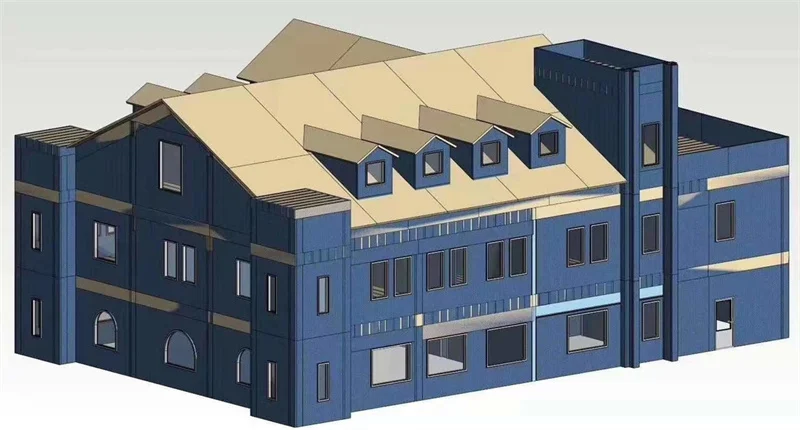

• Prefabricated residential units
• Modular commercial complexes
• Temporary emergency shelters
• Agricultural facilities
• Hospitality infrastructure

Technical Support Package:
• Comprehensive 12-month warranty
• On-site commissioning services
• Architectural design consultation
• Operator training programs
• Lifetime maintenance support
This innovative fabrication solution represents the next generation of construction automation, combining material efficiency with digital manufacturing technologies to revolutionize light steel structure production.
