Step Roof Flashing Sheet Roll Forming Machine Valley flashing Galvaed Steel 90 L Flashing Roll Former L shaped flashing is a versatile, general use flashing us
Detailed Content
Step Roof Flashing Sheet Roll Forming Machine Valley flashing Galvaed Steel 90 L Flashing Roll Former

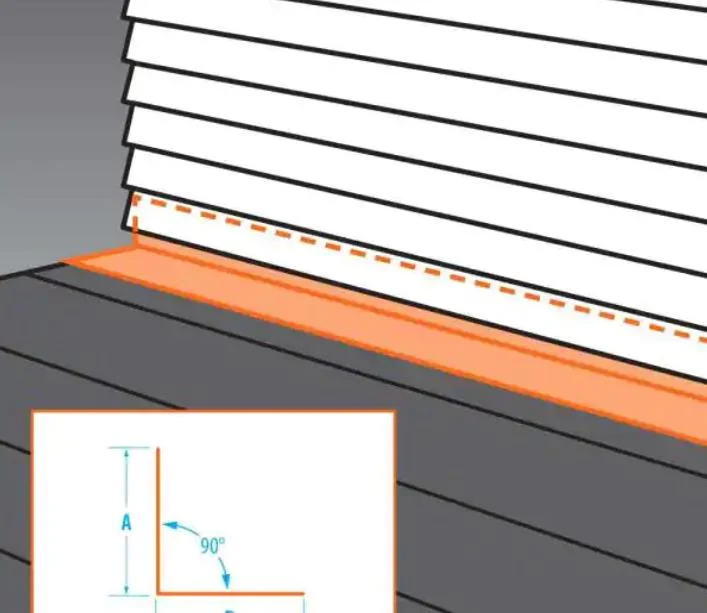

L shaped flashing is a versatile, general use flashing used where a uniform or strengthened finish is needed on a 90° surface. Made with 28-Gauge galvanized steel, L-Flashing can play an essential part in protecting your home against water damage. L-Flashing can be cut into smaller lengths to use as step flashing, very popular on USA market.
Details of Step Roof Flashing Sheet Roll Forming Machine Valley flashing Galvaed Steel 90 L Flashing Roll Former
- Raw materials it rolls: Pre-painted steel coils; Aluminum, Galvalum, Galvanized etc
- Material thickness: 0.4-0.6mm (PPGI,GI,GA,PPGA)
- Capacity of De-coiler: 5 TONS
- Rollforming stations: 10 stations
- Roller materials: 45# steel with tempering treatment and chrome coating treatment
- Shaft diameter: 50mm
- Safety option: Safety Cover eqiupped
- Cutting: Hydraulic cutoff
- Material of Cutting blade: Cr12 steel
- Control unit: PLC control to ensure the machine to run both automatically and manually.

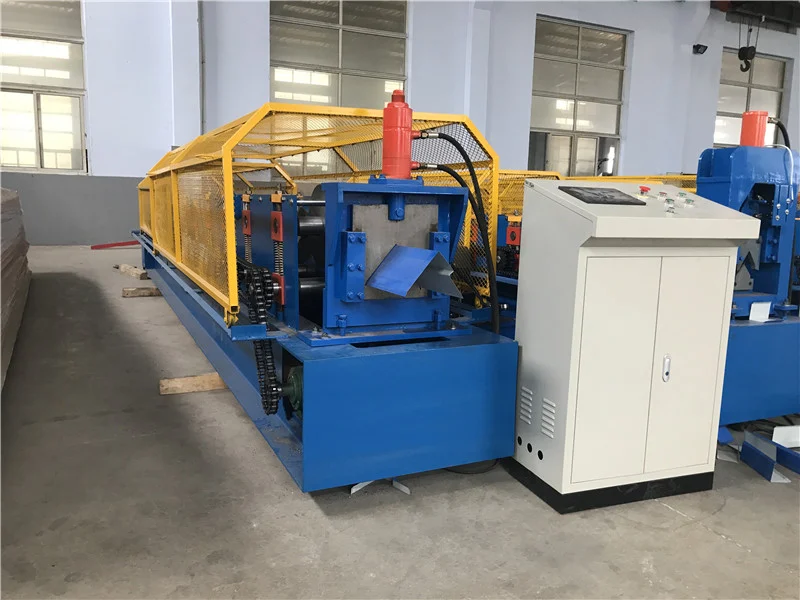

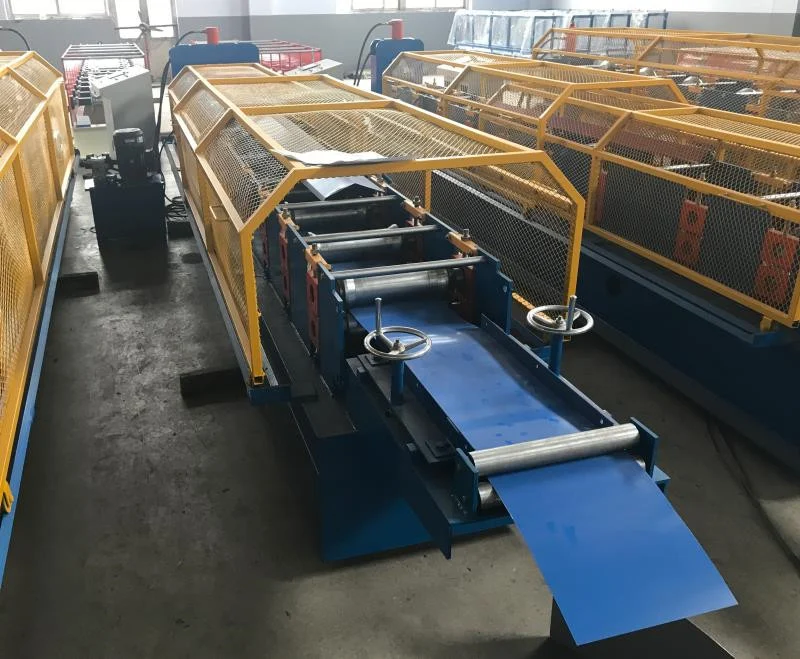

Machine pictures of L flashing valley roll forming machine :
