Suspended ceiling system metal furring channel rolling machine

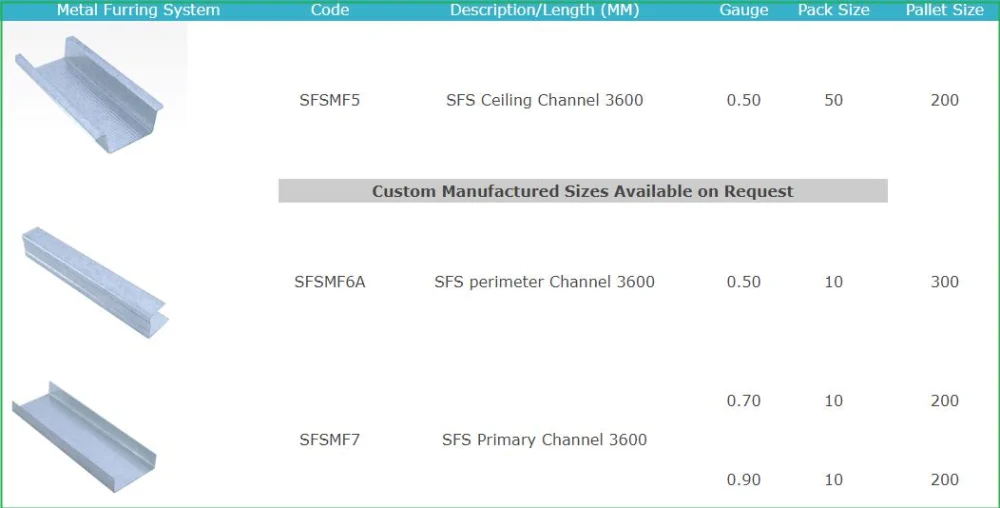

Suspended ceiling system metal furring channel rolling machine is designed to make the metal furring channel in batch fully automatically by the rolling forming method. Ceiling System provides a high-performance ceiling with fire protection and sound insulation. A suitable fixing from the structural soffit should be used and care should be taken to avoid overloading the Ceiling System. Here are some drawing profile for your reference:

Normally the metal furring channel machine for the ceiling system has the following types: furring omega channel, stud channel and track channel. And it also may use the wall angle profiles. All those profiles could be made by our machines. Here I will take a random track channel for example to show you our machine parameters and quality.

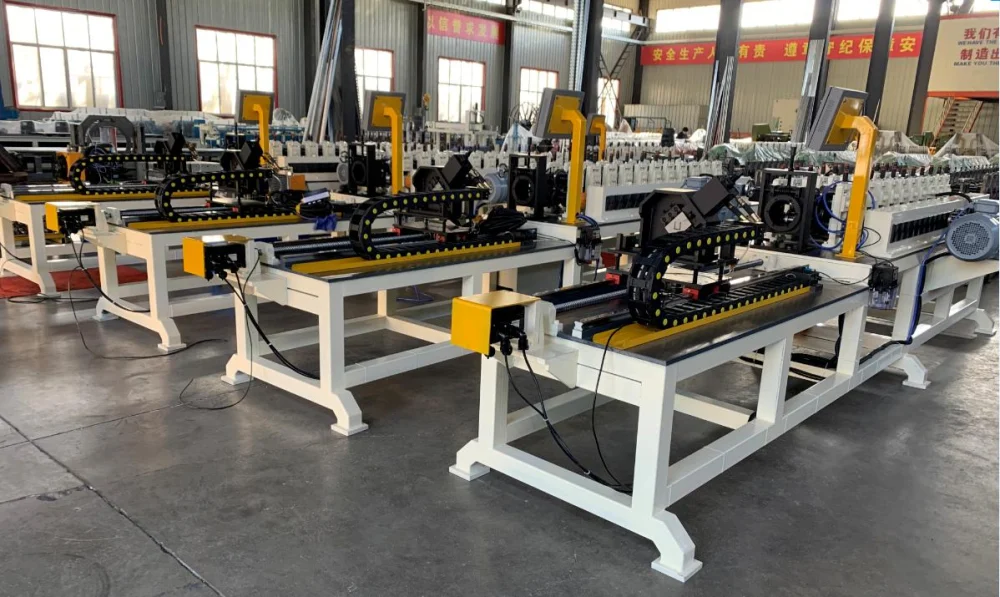

Suspended ceiling system metal furring channel rolling machine features:

1. For the base frame we use the frame work, it is not only beautiful in the appearance but also strong and steady when machine working.
2. It is with servo tracking system, the speed can reach 35 to 45 meter per minute. The servo motor we will use world famous brand.
3. The machine we designed using the molding frame the thickness range is around 35 to 40mm, so even if when the machine working in high speed, it also could be steady.
4. The rollers we use Gcr12mov, it is tough and strong for long time to use.

FOR MORE DETAILS, PLEASE REFER TO TEH FOLLOWIGN PICTURES:

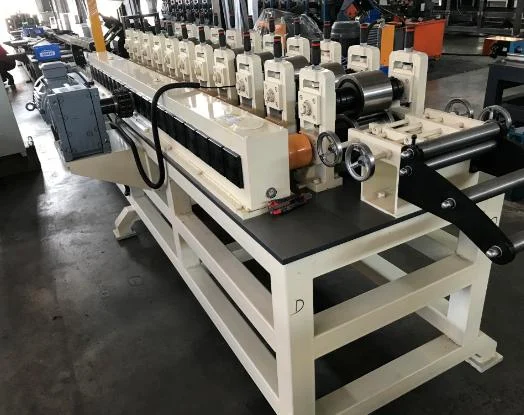

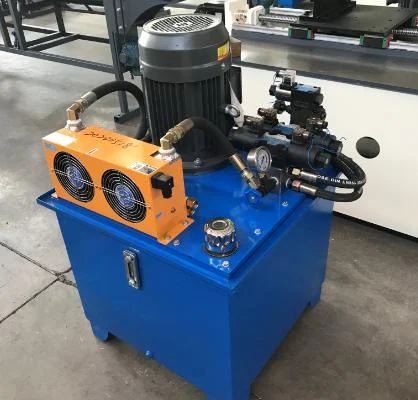

Use the gearbox as transmission for fast speed and long time to use	The hydraulic station with the cooling fan system

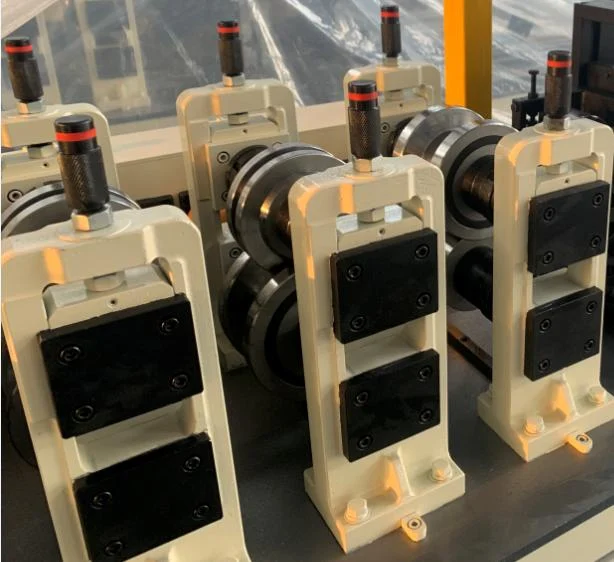

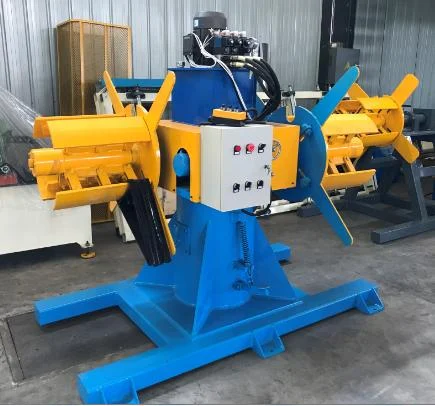

Strong molding frame	Double head decoiler for changing coil easily.

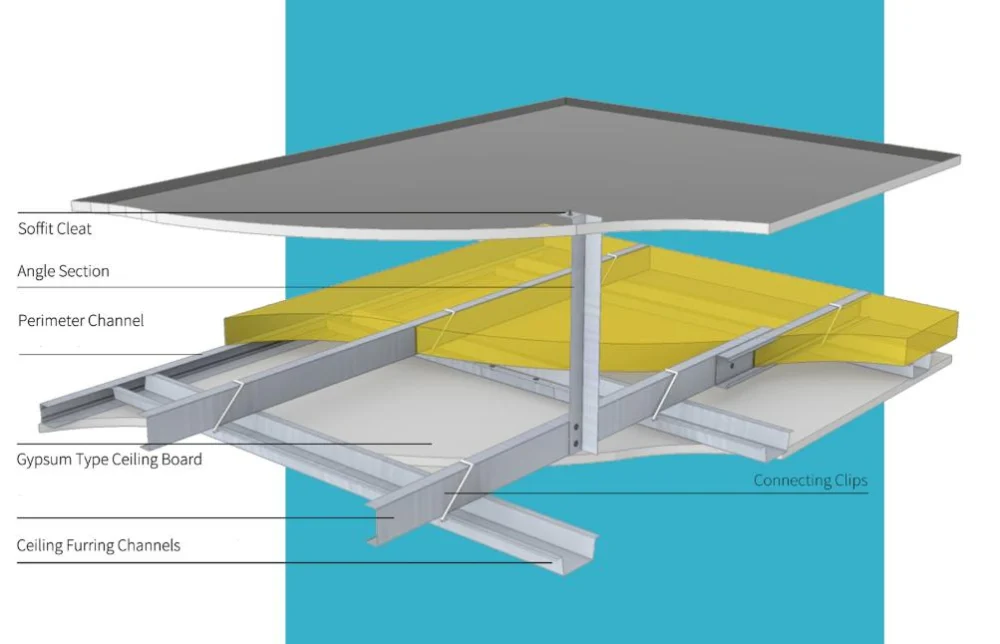

Suspended ceiling system metal furring channel usage:

For this machine, if you want to know more, please contact us at any time.
