Grille ceiling metal stud making machine
Grille ceiling metal stud making machine is designed to make metal stud, metal grille ceiling in batch fully automatically.
What is the grille ceiling

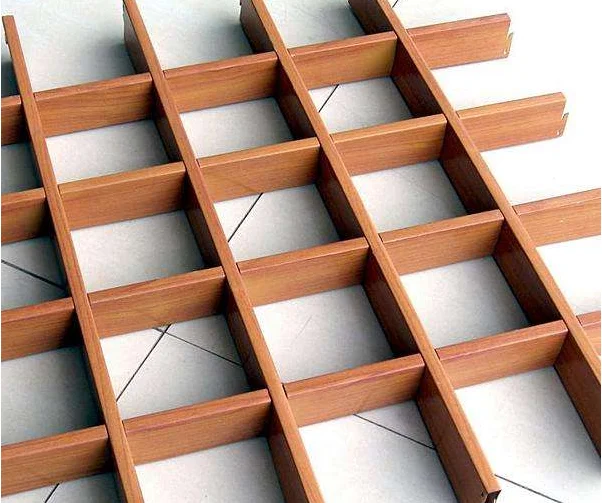

Grille ceilings can be installed in small ceilings, and are widely used in large shopping malls, restaurants, bars, waiting rooms, airports, subways and other stations. It is one of the commonly used ceiling materials for decoration companies. Here is some grille ceiling using picture for your reference:

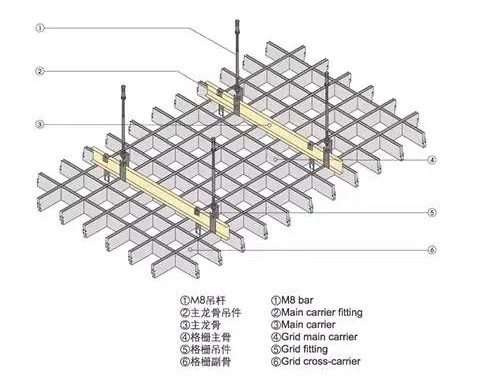

The standard is 10mm or 15mm, and the height is available in 40mm, 60mm and 80mm. Aluminum grid sizes are 50X50mm, 75X75mm, 100X100mm, 125X125mm, 150X150mm, 200X200mm to choose from. The regular grid size of sheet grid is (mm): 10 * 10, 15 * 15, 25 * 25, 30 * 30, 40 * 40, 50 * 50, 60 * 60. For the installation like the following drawing:

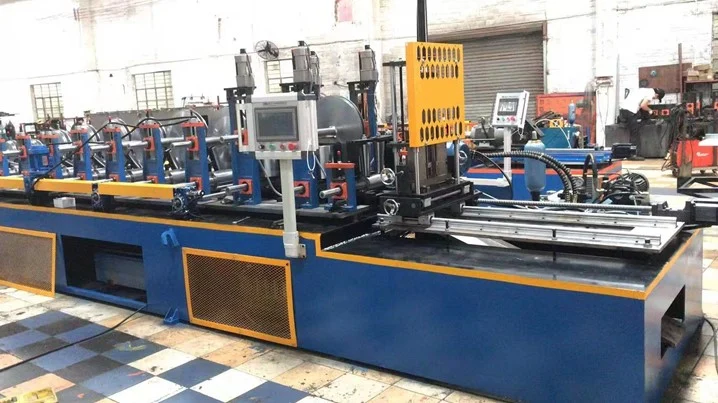

Based on the needs, we design the Grille ceiling metal stud making machine like following:

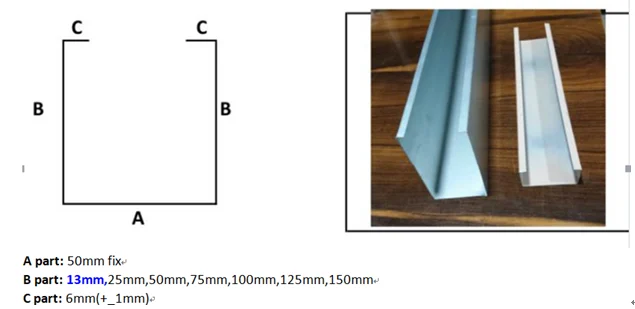

Take above drawing profile for example, show some parameters of Grille ceiling metal stud making machine:

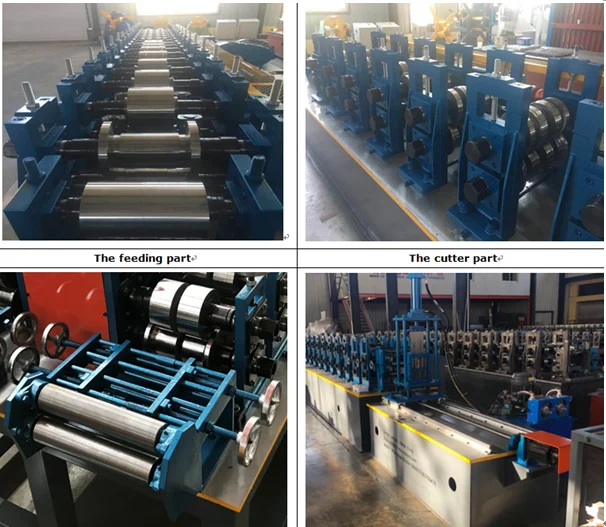

| Packing list-machine components | ||||
| No. | Name | Unit | Quantity | Remark |
| 1 | 4T decoiler | set | 1 | manual |
| 2 | Main roll former | set | 1 | Gear drive |
| 3 | Hydraulic cutting part | set | 1 | |
| 4 | PLC control station | set | 1 | |
| 5 | Hydraulic oil pump | set | 1 | |
| 6 | Product collect table | set | 2 | Manual/3m length |
And for the Grille ceiling metal stud making machine, if you want to know more information, please contact us at any time.
