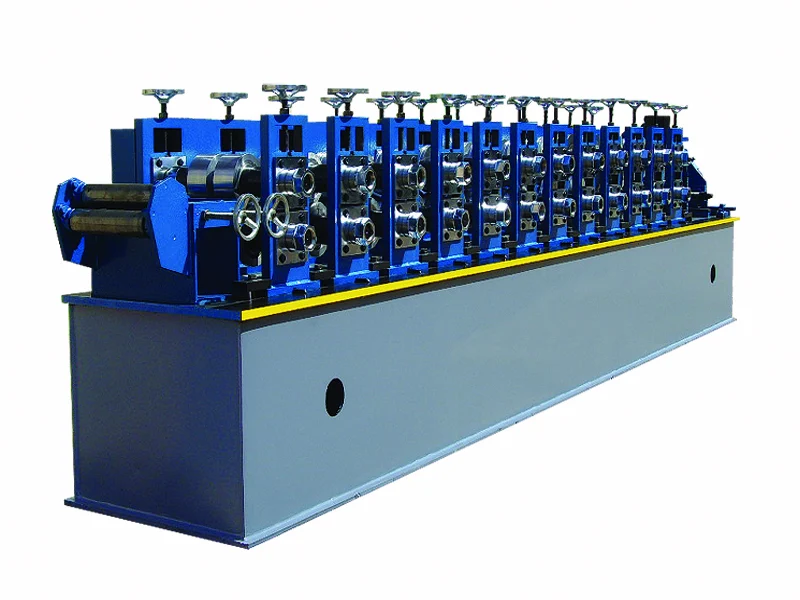

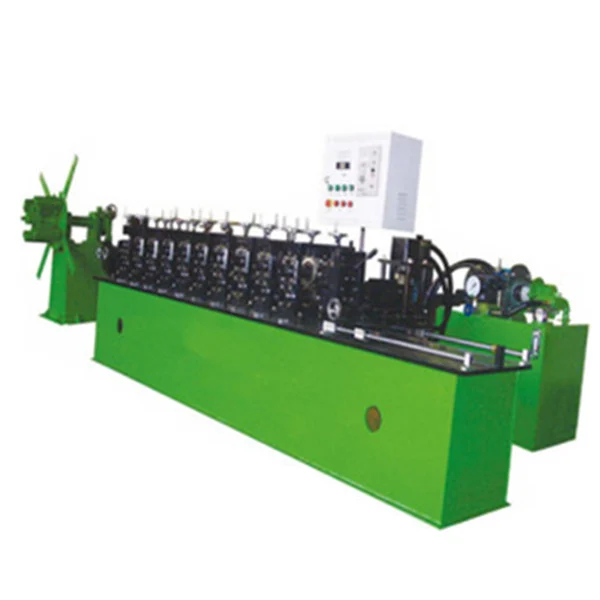

Light Guage Fully Automatic Tee Grid Making Machine

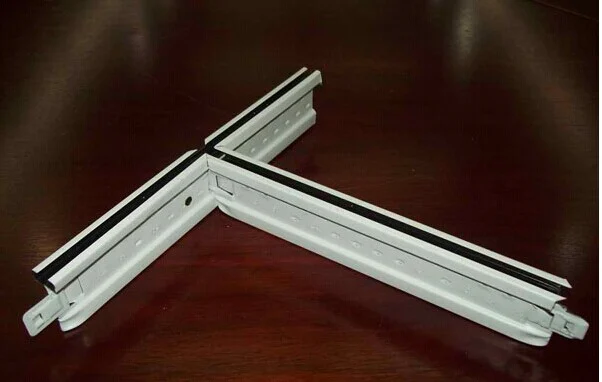

Light Guage Steel Fully Automatic Tee Grid Making Machine for Suspended Ceiling

Brief Introduction

Tee bar Roll Forming Machine has two types of fully automatic and semi-automatic. Fully automatic tee bar making mill is controled by computer all over the process. It can roll forming and punching as a whole without stop the machine.

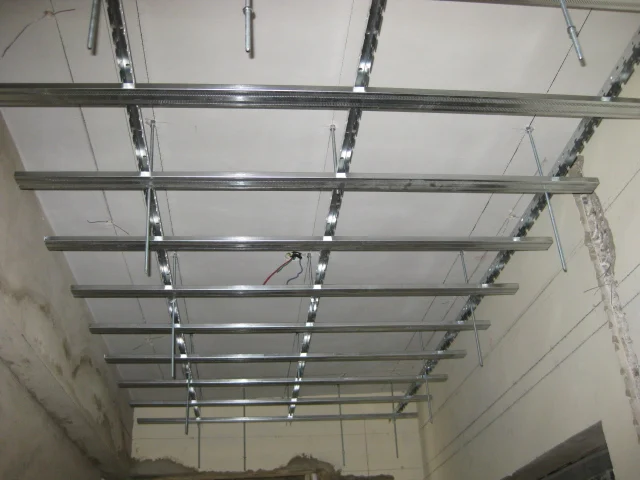

As for suspended ceiling, there are different types making mill for your optionnal: metal U tracks, C stud, V shape keel or W shape keel.

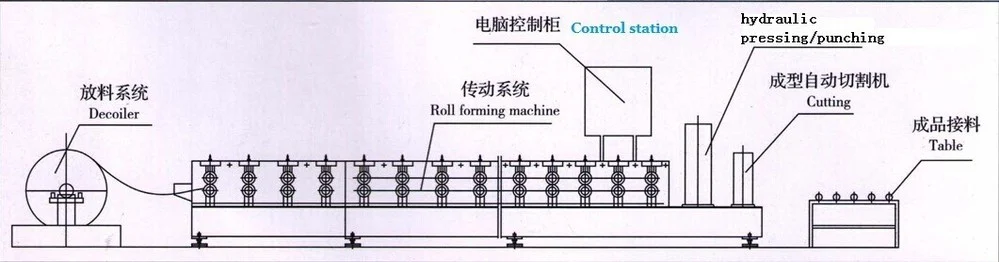

Tee Bar Roll Forming Machine productjion flow sketch

Flow chart : Decoiler--Main Roll Forming--PLC System-Hydraulic System –punchine --Cutting -Output Table

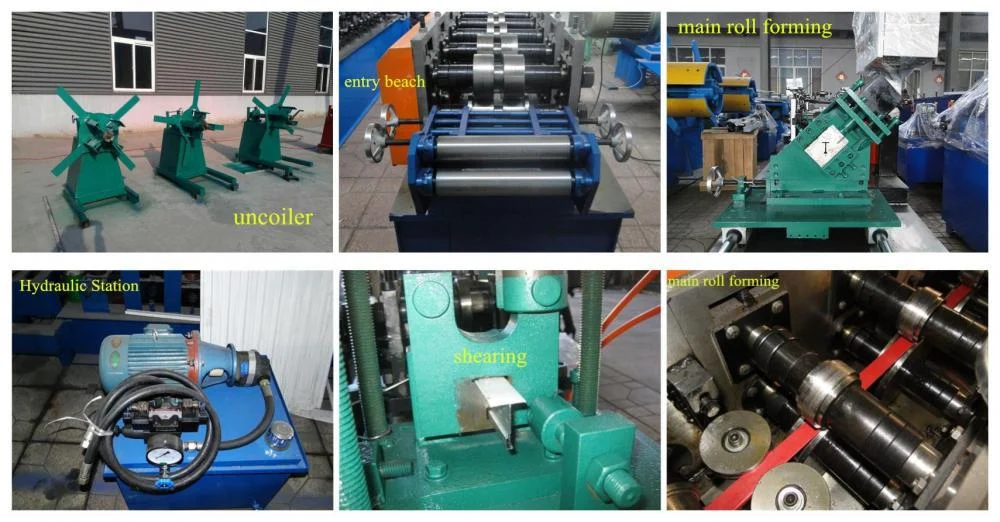

Main elements of Fully Automatic Tee Grid Machine

1.Decoiler 1 set

2.main roll forming machine 1 set

3.punching maching(as customer's need) 1 set

4.Cutting machine (normal cutting and flying track cutting saw)(as customer`s need choose one set)

5.PLC control 1 set

6.Counter 1 set

7.hydraulic station 1 set

8.receiving table 1 set

Some main parameters of ceiling roll forming machine

1.Working efficiency:25m/min

2.Processing material: GI

3.Material hardness: 550MPA-350MPA

4.Thickness of material: 0.2-0.55mm

5.Width of material: 35mm-65mm

6.Un-coiler system: 1.5 Ton decoiler (Manual Decoiler, electric decoiler , hydraulic decoiler)

7.Number of rollers: 10 rollers

8.Roller fixer: guide column

9.Roller material: Gcr12 MoV quenched

10.Material of shaft: 45# steel

11.Diameter of shaft: 40mm

12.Main power: 3KW

13.Hydraulic power: 3KW

14.Hydraulic pressure: 20Mpa

15.Blade material:Gcr12 MoV quenched

16.Voltage: 380V, 50HZ, 3phase (adjustable by customer)

17.Frame: 25mm

18.Drive : gear, chain or case of different speeds(as customer`s demand)

19.Punching mould: each type one set

20.Punching machine: Gcr12 MoV quenched

21.Control system: Delta of Taiwan.

22.Machine color: yellow or blue

23.Lenth: 3000*800*1400mm
