High Speed Shutter Door Roll Forming Machine

    Payment Type: L/C,T/T,D/P,Western Union,D/A
    Incoterm: FOB,CFR,CIF,FCA
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
Basic Info

Model No.: zt-005-206

Material: Steel

Style: Classic

Open Style: Automatic

Certification: ISO9001, CE

Position: Garage

Machine Size: 4.5m *0.8m *1.2m

Shalf Diameter: ¢56mm

Roller Station: 14 Stations

Roller Material: Bearing Steel With Quenched Treatment

Power: 5.5kw

Speed: 10-25m/min

Shaft Material: 45# Steel With Quenched Treatment, Precision Machi

Material Thickness: 0.5-1.2mm

Additional Info

Packaging: As the Customer's Requirement

Productivity: 10-25m/min

Brand: ZHONGTUO

Transportation: Ocean,Land

Place of Origin: Made in China

Supply Ability: 20 sets per month

Certificate: CE, ISO9001

Product Description

Shutter Door Roll Forming Machine with High Speed

Product Description

Shutter door Roll Forming Machine is a special type of roll forming machine, producing shutter door panel or slat standard and elegant, that shows good performance and using trends in the future sufficiently.This kind of cold roll forming machine is widely used for making various metal,wall panels and roof panels for steel constructions, steel structure projects and containment systems etc. This production a advanced-technology and practical usable system.

Shutter Slat Roll Forming Machine

Components of Line

1. Decolier

 Shutter Roll Forming Machine--Decolier
























Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

a. Coil inner diameter: 450-550mm

b. Coil max width: 300mm
c. Max carrying capacity: 3000kg

(you can choose this part with Electric or hydraulic)

2.Entry leveling and punching dots

 Shutter Roll Forming Machien-entry leverling

This part will level coil to make sure it is neat clean and straight.

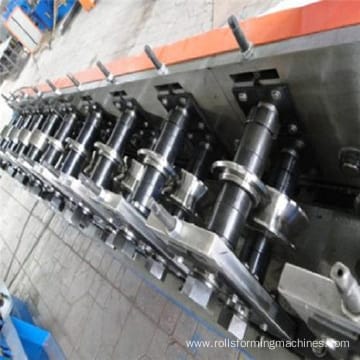

3.Roll forming machine

 Shutter Roll Forming Machine-roll forming mashine1

 Shuttr Roll Forming Machine-roll forming machine 2

a. Number of forming steps: 14 stations

b. Shaft material: 45# steel with quenched treatment, precision machined,

The diameter: ¢56mm

c. Roller material: bearing steel with quenched treatment

d. Transport: by gear

e. Forming speed: 10-25m/min
f.Motor:5.5kw

g.Voltage:380v, 50Hz,3 phase

h. Structure: independent stand

i.Size of machine:4.5m *0.8m *1.2m

j.weight:4.6T

4.Shearing system

Shutter Roll Forming Machine-shearing system

Shutter Roll Forming Machine-shearing system 2

Servo flying and tracking cutting saw, the cutting saw will adjust the cutting speed and location according to the main machine speed. By this method, the machine working speed will be same as the main machine accordingly. The cutting plate we take the best material for cutting it in high speed and beautiful cutting scare.

The material of blade: Cr12Mov, Hardening HRC 58-62℃

Length Tolerance:3m±1.5mm

5.Hydraulic station

 Roll Forming Machine-hydraulic station

Hydraulic motor Power: 3kw

Hydraulic oil: 46#

Hydraulic pressure : 12Mpa

Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And two sets of electromagnetism valves.

6.PLC station

 Roll Forming Machine-PLC station

PLC control system, we will take Panasonic or you can specify the one you like. Different with normal machine, PLC programmed will add servo cutting saw control parameters.

7. Run out table

It adopts welded steel and supported roller to transmit the products.

Quantity:2 sets


Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.

Delivery time : 50 days

Container need: one 20`


1. One year, and we will provide the technical support for the whole life.

2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.

3. Need one technician.

4. Training time: one week (contains the time of installation and adjustment)
