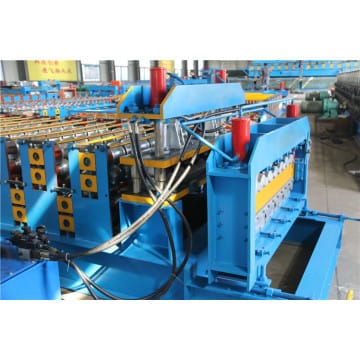

Glazed and Trapezoid Tile Double Layer Roll Forming Machine Popular in India

Share to:
    Unit Price: USD 12500.00 - 16500.00 / Set/Sets
    Payment Type: L/C,T/T,D/P,Western Union,D/A
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days

Basic Info

Model No.: ZT-004-062

Additional Info

Packaging: One 20GP

Productivity: 8-25m/min

Brand: Zhongtuo

Transportation: Ocean,Land

Place of Origin: Hebei

Supply Ability: 30sets/month

Certificate: CE/ISO9001

Product Description

Glazed and Trapezoid Tile Double Layer Roll Forming Machine Popular in India

Aluminum Metal Roof Roofing Wall Panel Machine are popular in all of our clients, so do not hesitate to chontact us if you want more information.

glazed double layer 08

Production process

Double Layer Machine For Color Steel Profile

Uncoiling→Feeding material into machine→Rollforming→Measuring length→ Step formed→ Auto cutting→Products receiving

Components of production line

No.

Name

Unit

Qty

1

Manual Decoiler

set

1

2

Main forming machine

set

1

3

PLC control system

set

1

4

Hydraulic pump station

set

1

5

Post cut

set

1

6

Electric motor

set

1

7

Output table

set

1

Production parameters

Processingmaterial: colored steel plate, galvanized plate, or aluminum plate

Materialthickness: 0.3- 1.2mm

Material width:1220mm/1200/1000/1250

Forming speed: 8-25m/min


Drawing of tile

Glazed and Trapezoid Tile Double Layer Roll Forming Machine Popular in India

Glazed and Trapezoid Tile Double Layer Roll Forming Machine Popular in India


Un-coiler System

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

Loading capacity

Uncoiling width

Inner diameter

5T

1220mm

450-550mm


Coil feeding part

Usage: Put the raw material(steel plate) through thebeach to manufacture and process,it can guarantee that the products are neat,parallel and everything is uniformity.Please refer to the equipment regulationto know the function of locate angle iron.

glazed double layer 05

Forming device

Usage: In order to keep the product shape andprecision, adopts welded sheet structure, motor reducer drive, chaintransmission,roller was chromed which can keep the molding platesurface smooth and not easy to be marked when it is working

Feature : Ensure stability , precision and lifetime.

IMG_0884

IMG_0879


No.

Main parameter

1

Length of the main part

About8500х1650х1500mm

2

Weight of main part

About 5.5 t

3

Voltage

380V/50HZ3Phase (as customer`s request)

4

Roller fixer

Middle plate welded

5

Frame

350 H steel welded

6

Frame thickness

16mm

7

Drive mode

Chain

8

Material of rollers

45# steel, surface hard chromium plating.

9

Material of shafts

45# steel

10

Diameter of shafts

Φ80mm

11

Number of rollers

15 rollers

14

Main power

5.5kw

Cutting device

Advanced hydraulic drive, automatic punching andcutting after forming, no distorting or wasting, high level safety factor.

(include cutting tools, hydraulic tank, cutter machine)

Blade Material

Cutting system

Cr12 quenched

Full automatic

Controlling device

1.Adopted PLC, transducer, touch panel from DeltaTaiwan to ensure high speed with

stability, precision and lifetime.

2.Other electric element are Delta

3.Equipped with movable switch, air break, radiator,transformer & electric leakage protector for operation convenience andsafety.

Screen

PLC

Text screen displayer

Taida DVP14ES from Taiwan

Hydraulic

(include a set of hydraulic tank , a set of hydraulicoil pump, two hydraulic pipes. And two sets of electromagnetism valves )

Orgin

Power

Advanced hydraulic system from Taiwan

3kw



Spare parts( for free)

1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;

2. Rubber mat 1 pcs;

3. Bolt spanner 1 pcs

Remarks

Payment terms

30% T/T in advance and balance 70% after inspection confirmation before shipment.

Delivery

within 45 working days after receipt of deposit.

Packing

Nude packing with 1*20 container


Looking for ideal Glazed and Trapezoid Tile Roll Forming Machine Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Layer Roll Forming Machine are quality guaranteed. We are China Origin Factory of Glazed and Trapezoid Tile Double Layer Roll Forming Machine Popu. If you have any question, please feel free to contact us.
