Double Deck Steel Roofing Panel Forming Line

Share to:
    Unit Price: USD 14500.00 - 24900.00 / Set/Sets
    Payment Type: T/T,L/C,D/A,D/P,Western Union,OA
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days

Basic Info

Model No.: Zt-003-05

Additional Info

Packaging: One 40GP

Productivity: 15-20m/min

Brand: Zhongtuo

Transportation: Ocean,Land

Place of Origin: Hebei

Supply Ability: 30sets/month

Certificate: CE/ISO9001

Product Description

Double Deck Steel Roofing


Panel Forming Line

Product Description

Double Deck Corrugated Roof Sheet Making Machine Production Process:

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→

Products receiving

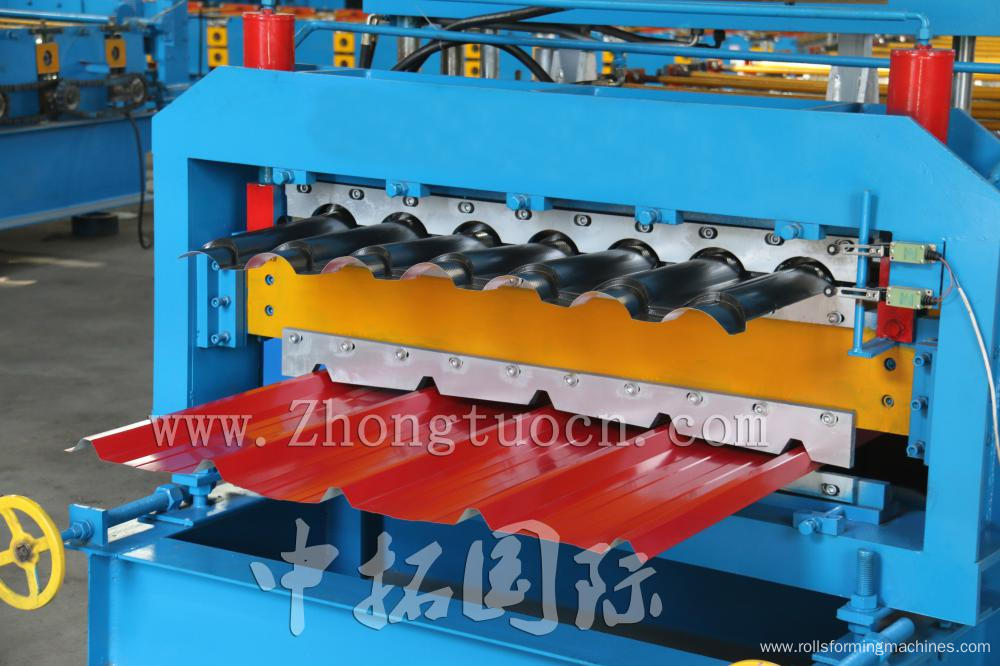

Details of Double Deck Corrugated Roof Sheet Making Machine :

double layer roll forming machine

Parameters:

No.

Main Parameters of Double Deck Corrugated Roof Sheet Making Machine

1

Suitable to process

Colored Steel plate, galvanized board, aluminum plate

2

Control system

PLC control

3

Productivity

15-20m/min

4

Width of the raw material

1250mm

5

Thickness of the plate

0.3-0.6mm

6

Rollers

Up layer:13 rows

Down layer:18 rows

7

Diameter of the rollers

70mm

8

Rolling galvanization thickness

0.05mm

9

Material of the cutting blade

Cr12

10

Dimension

9.2m*1.6m*1.4m

11

Weight

About 13.2T

12

Voltage

380V 50Hz 3phases

13

Power

5+4kw

More photos of Double Deck Corrugated Roof Sheet Making Machine :

2

Components of Double Deck Corrugated Roof Sheet Making Machine

No.

Name

Unit

Qty

1

Manual Decoiler

set

1

2

Main forming machine

set

1

3

PLC control system

set

1

4

Hydraulic pump station

set

1

5

Post cut

set

1

6

Electric motor

set

1

7

Output table

set

1

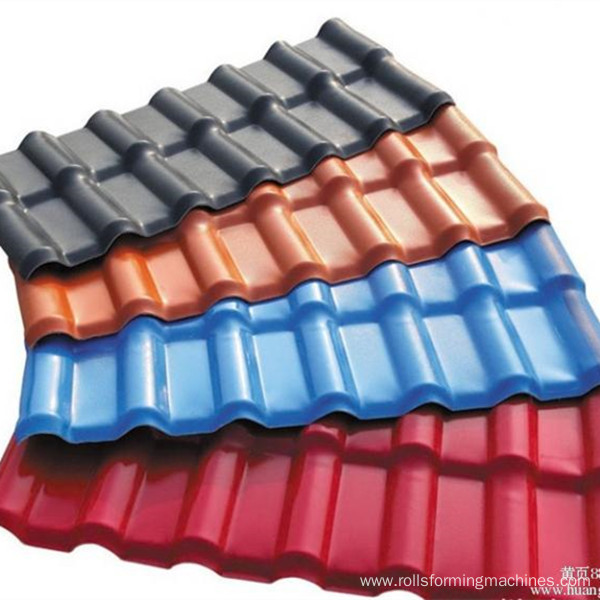

Raw materials

Double Sheet Corrugated And Roll Forming Machine



Packaging & Shipping

Packaging Detail of Double Deck Corrugated Roof Sheet Making Machine :

1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.

Machine Description

Quantity

Delivery time

Container Type

Price(FOB TIANJIN)

Double Deck Corrugated Roof Sheet Making Machine

1 SET

45 working days

after receiving deposit

One 40GP

USD14900--24900

Double Deck Corrugated Roof Sheet Making Machine are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets,

shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers' requests.
