Cold Double Deck Corrugated Roof Sheet Making Machine

    Unit Price: USD 14900.0000 - 24900.0000 / Set/Sets
    Payment Type: T/T,L/C,D/A,D/P,Western Union,OA
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
Basic Info

Model No.: Zt-003-02

Additional Info

Packaging: One 40GP

Productivity: 15-20m/min

Brand: Zhongtuo

Transportation: Ocean,Land

Place of Origin: Hebei

Supply Ability: 30sets/month

Certificate: CE/ISO9001

Product Description

cold double deck corrugated roof


sheet making machine

Product Description

Components of Double Layer Tile Roof Roll Forming Machine

No.

Name

Unit

Qty

1

Manual Decoiler

set

1

2

Main forming machine

set

1

3

PLC control system

set

1

4

Hydraulic pump station

set

1

5

Post cut

set

1

6

Electric motor

set

1

7

Output table

set

1

Double Layer Tile Roof Roll Forming Machine Production Process:

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→

Products receiving

Details of Double Layer Tile Roof Roll Forming Machine:

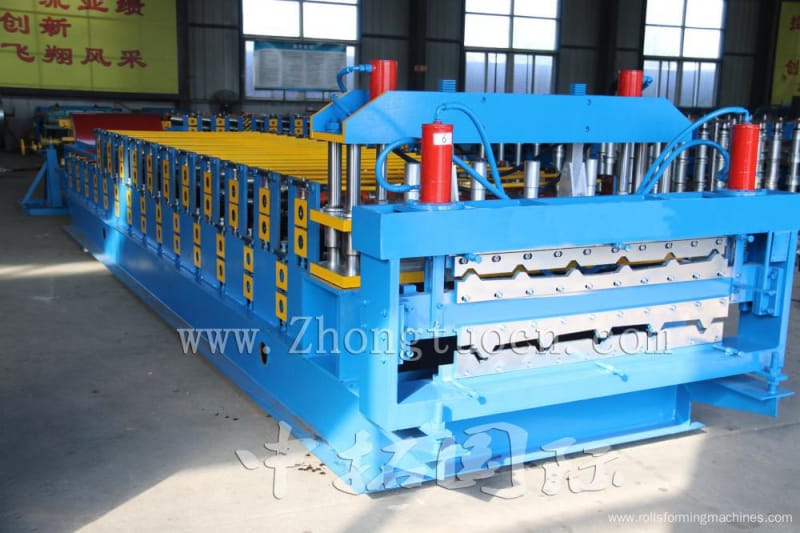

double layer roll forming machine


Raw materials

Double Layer Tile Roof Roll Forming Machine


Parameters:

No.

Main Parameters of Double Layer Tile Roof Roll Forming Machine

1

Suitable to process

Colored Steel plate, galvanized board, aluminum plate

2

Control system

PLC control

3

Productivity

15-20m/min

4

Width of the raw material

1250mm

5

Thickness of the plate

0.3-0.6mm

6

Rollers

Up layer:13 rows

Down layer:18 rows

7

Diameter of the rollers

70mm

8

Rolling galvanization thickness

0.05mm

9

Material of the cutting blade

Cr12

10

Dimension

9.2m*1.6m*1.4m

11

Weight

About 13.2T

12

Voltage

380V 50Hz 3phases

13

Power

5+4kw

More photos of Double Layer Tile Roof Roll Forming Machine :

Double Layer Tile Roof roll forming machine

Double Layer Tile Roof roll forming machine


Packaging & Shipping

Packaging Detail of Double Layer Tile Roof Roll Forming Machine :

1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.

Machine Description

Quantity

Delivery time

Container Type

Price(FOB TIANJIN)

Double Layer Tile Roof Roll Forming Machine

1 SET

45 working days

after receiving deposit

One 40GP

USD14900--24900

Double Layer Tile Roof Roll Forming Machine are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets,

shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, anddifferent kinds of greenhouses. What's more,

equipment can be designed and manufactured as customers'requests.
