Metal And Steel Frame Roll Forming Machine For Door

Share to:
    Unit Price: USD 16500.00 - 8500.00 / Set/Sets
    Payment Type: T/T,L/C,D/A,D/P,Western Union
    Incoterm: CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: ZT-005-40

Additional Info

Packaging: nake package

Productivity: 30 sets/month

Brand: ZHONGTUO

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 30 sets/month

Certificate: CE, ISO9001

Product Description

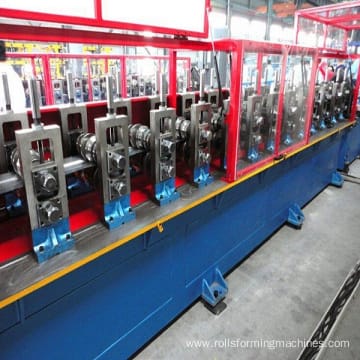

Metal And Steel Frame Roll Forming Machine For Door

Metal And Steel Frame Roll Forming Machine can rollform different types of metal doors or window frames, punching can also be based on your needs and design. After the roll forming machine roll forming, the surface will be very smooth, no beautiful surface scratches. This roll forming equipment consisited German winder, feed and leveling equipment, hole punch and stamping dies, mainly Bending Machine, cutting machine, run the table, and we can do a custom roll forming machine, ie we can design according to your specifications and dimensional drawings machines.

Aluminum And Steel Door Frame Roll Forming Machine

Main Parameters:

  • Suitable Material

Type GI, PPGI

Thickness 0.60-1.20mm

  • Machine Material
Active shaft No. 45 steel tempered Up to final design

Roller No. 45 steel chrome plated

Cutting Blade Cr12 quenched

  • Power Requirement
Type 380V/3PH/50HZ or Customized

Main Motor 3kw

Hydraulic 2.2kw

  • Speed

Forming Speed 20-25m/min, Excludes cutting & punching

  • Decoiler

Max Capacity 2000kgs

Suitable OD 1200mm

Suitable ID 450/550mm

Max Width 300mm

  • Forming Stand

About 14 group Up to profile

  • Transmission

Chain, sprocket Double-row entire chain

  • Type of Cutting

length-set cutting, Hydraulic cutter

  • Control System

Mitsubishi PLC& transducer

Composition of Steel Door Frame Machine:

1. De-coiler

Door Frame Machine


2. Feeding and Leveler

  • Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.
Galvanized Steel Door Frame

3. Roll Forming

Door Frame Making Machine

4.Cutting Part

  • Material of blades : Gcr12MoV quenched
Door Frame Making Machine

Sample of Steel Frame:

Galvanized Steel Door Frame

Metal Door Frame Machine



The video of Metal Door Frame Roll Forming Machine:


Looking for ideal Frame Roll Forming Machine For Door Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Steel Frame Machine For Door are quality guaranteed. We are China Origin Factory of Metal Frame Machine For Door. If you have any question, please feel free to contact us.
