Corrugated Steel Roof Metal Sheet
Roll Forming Machine
Corrugated tile roll forming machine are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers' requests.
Corrugated sheet roll forming Machine Forming Equipment
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving
Control System: PLC with touch screen
Way Of Drive: 1.2 inch single chain
Roll material: 45# high grade steel
Shaft material: 45# high grade steel
Frame material: 300 H-high grade steel
Cutting blade material: Cr 12 high grade steel
Cutting type: hydraulic cutting
Lanugage system: Chinese ,English ,
Size of container: GP
Feature: high speed, low energy consumption

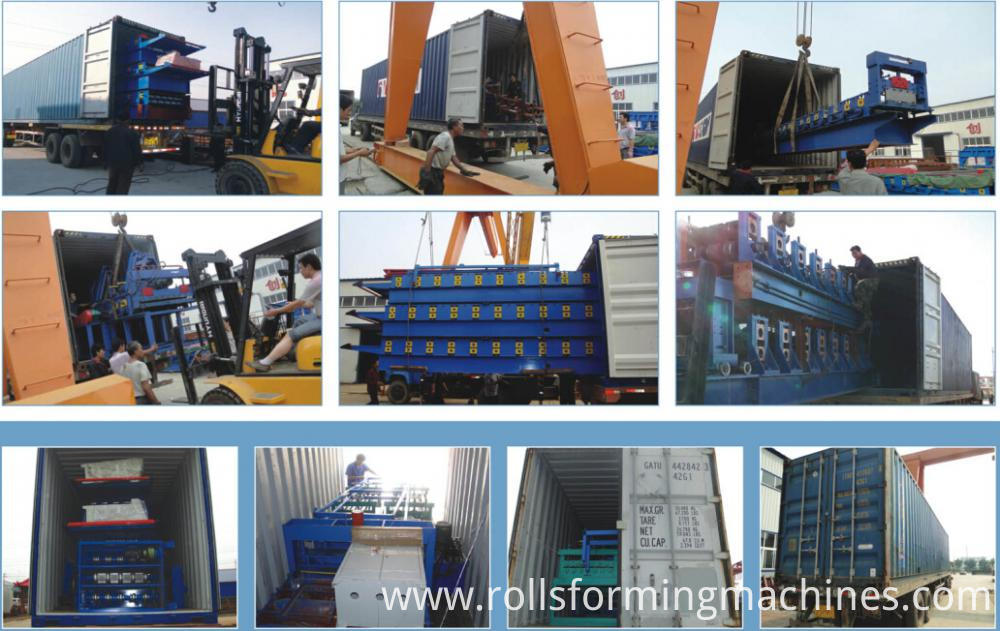

1. one 40ft container for loading one set machine with Manual Decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed by steel wire with Container.
45 days after receipt of buyer's deposit
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year. Market:
At recent years,large of products were sold to Russia,India,England,Australia,America,Kazakhstan,Malaysia,Nigeria,
Rumamia and Albania etc,more than 50 countries and regions.
2. Product Specifications
Length: Any length
Length Tolerance: ±2mm/6m
3. Working Speed
25 m/min (10 piece per min as 8 feet per piece) (Standard machine)
4. Control System
Mitsubishi/Siemens PLC& transducer (Custom)
5. Total Power
6. Total Weight
About 5T (Up to final design)
Components of production line :
1.Manual decoiler: set 1
2. Punching part: set 1
3. Main forming machine: set 1
4. PLC control sysem :set 1
5.Hydraulic pump station: set 1
6. Post cut: set 1
7. Electric motor: set 1
8. Output table: set 1
Product Categories : Roofing Sheet Roll Forming Machine > Corrugated Roof Roll Forming Machine
